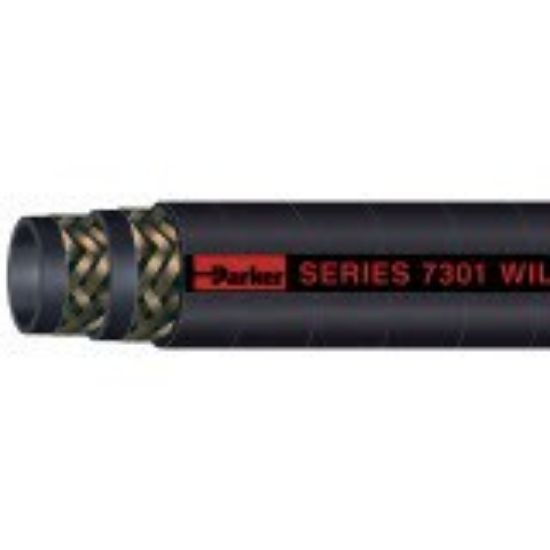

7301-1502150 - WILDCATTER® Oilfield Hot Oiler Hose, Series 7301

Wildcatter Oilfield Hot Oiler Hose is designed for high pressure transfer of hot oil and petroleum products in applications to 275°F and 2250 psi, Series 7301

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 7301-1502150

$58.78/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/2
Standard Pack Qty (ft)	150	Maximum Working Pressure (psi)	2250
Cover Color	Black	Inside Diameter	38.1 mm
Maximum Operating Pressure	2250 psi	Outside Diameter	50.8 mm
Weight	1.59 lb	Maximum Operating Temperature	275 °F Continuous
Hose Inner Tube Material	Chloroprene	Division	Hose Products Division
Cover Material	Chloroprene Rubber (CR)	Media	Chemicals (Wax)
Application	Oilfield	Package Type	Coil
Minimum Bend Radius	330.2 mm	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	2 Braids of Wire	Specifications Met	n/a
Cover Structure	Wrapped

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
