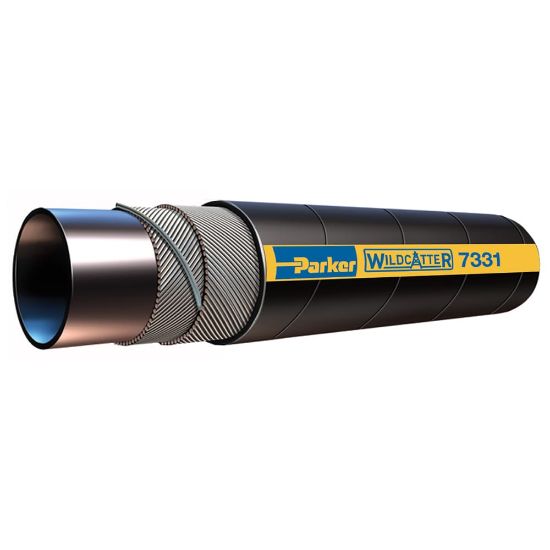

7331-3000 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7331

Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi, Series 7331

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 7331-3000

$35.00/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Vacuum Pressure Rating	Full	Inside Diameter	76.2 mm
Cover Color	Black	Weight	2.95 kg/m
Package Type	Coil	Outside Diameter	91.7 mm
Maximum Operating Pressure	27.6 bar	Maximum Operating Temperature	92 °C
Length per Package	100 ft	Division	Hose Products Division
Media	Fuels - Check fuel type with our catalogue chart.	Hose Inner Tube Material	Black
Design Factor	4:1	Application	Oilfield
Specifications Met	n/a	Cover Structure	Wrapped
Minimum Bend Radius	15 inch	Cover Material	Nitrile Blend
Hose Reinforcement Material	Multiple Plies of Textile with Wire Helix	Minimum Operating Temperature	-40 °C

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
