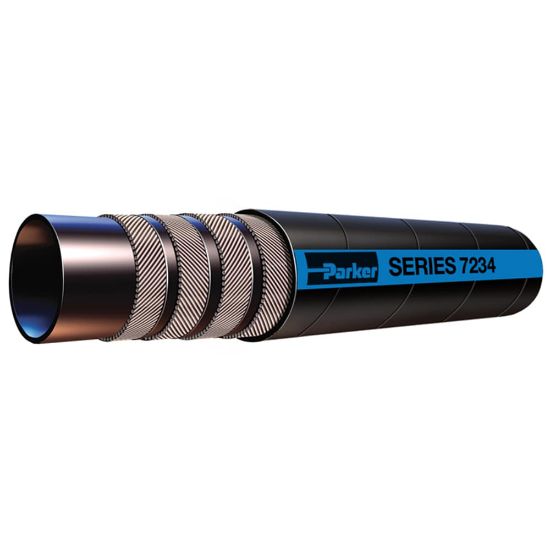

7234-2002 - WILDCATTER® Oilfield Slim Hole Rotary Drill Hose, Series 7234

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	168 in stock

SKU 7234-2002

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Compatible Fitting	WC Series	Maximum Operating Temperature	200 °F
Hose Inner Tube Material	Black	Length per Package	100 ft
Division	Hose Products Division	Cover Material	Nitrile
Media	Water	Tube Material	Nitrile
Package Type	Coil	Application	Oilfield
Minimum Bend Radius	317.5 mm	Hose Reinforcement Material	2 Braids of Wire
Specifications Met	n/a	Minimum Operating Temperature	-40 °C
Cover Structure	Wrapped	Cover Color	Black
Inside Diameter	2 inch	Weight	1.25 kg
Maximum Operating Pressure	3000 psi	Outside Diameter	2.593 inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
