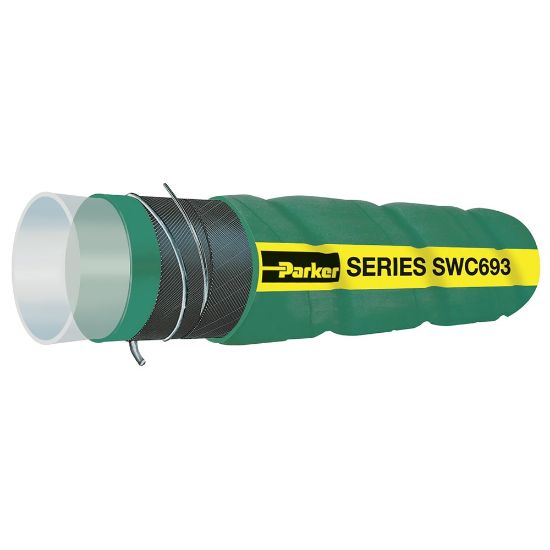

SWC693-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Name: SWC693-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE
SKU: SWC693-2000
Price: 24.72 USD
Availability: InStock

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

Manufacturer: Parker

Availability:

37 in stock

Wichita, KS

Partner Available:

3070 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU SWC693-2000

$24.72/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Color	Green	Media	Solvents
Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Minimum Operating Temperature	-40 °C	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Cover Structure	Corrugated	Minimum Bend Radius	51 mm
Application	Processing	Inside Diameter	2 inch
Maximum Operating Pressure	250 psi	Outside Diameter	64.5 mm
Nominal Hose Inside Diameter	50 mm	Weight	0.93 lb/ft
Vacuum Pressure Rating	737 mm-Hg	Size	-32
Division	Hose Products Division	Compatible Fitting	n/a
Maximum Operating Temperature	82 °C
