*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

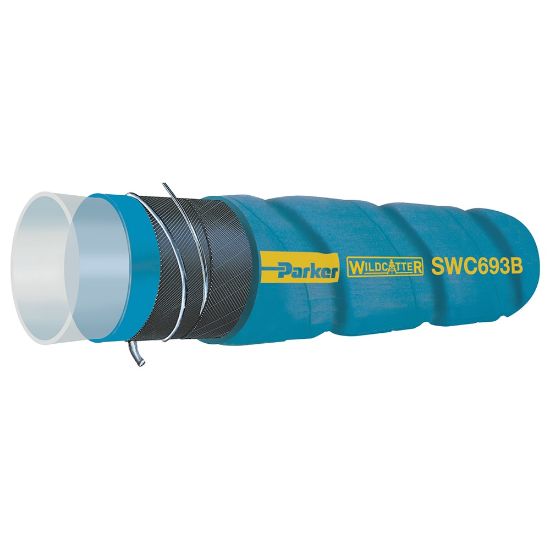

SWC693B-3000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SWC693B-3000

$33.53/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Blue
Hose I.D. (inch)	3	Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)
Compatible Fitting	n/a	Media	Solvents
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Structure	Corrugated
Minimum Bend Radius	5 inch	Minimum Operating Temperature	-40 °C
Application	Transportation	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Outside Diameter	3.530 inch	Nominal Hose Inside Diameter	80 mm
Weight	1.45 lb/ft	Maximum Operating Pressure	200 psi
Inside Diameter	3 inch	Vacuum Pressure Rating	29 Inch-Hg
Maximum Operating Temperature	82 °C	Size	-48
Division	Hose Products Division

Product resources

Literature and Reference Materials
