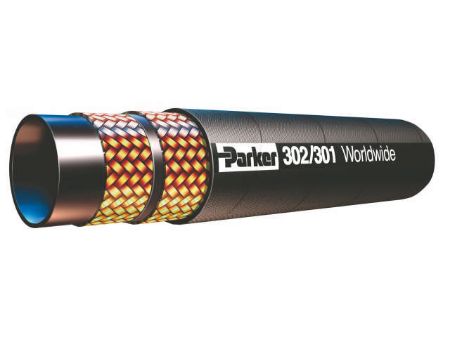

Worldwide Hydraulic Industry Standard Hose 1150-5800 PSI – 302 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 302 hose is a worldwide hydraulic industry standard hose manufactured to strict international quality specifications in order to provide consistency of performance. The 302 hose is designed with a universal two-wire construction to meet global industry standards. It offers a high working pressure, long service life and a wide range of fluid compatibility. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Machine Tool
• Material Handling
Features/Benefits:
• Universal two-wire hose design manufactured to international specifications
• Increased working pressures for improved reliability and expanded applications
• Synthetic rubber inner tube for greater fluid compatibility and bio-oil resistance
• 1150-5800 PSI working pressure in different sizes
Industry Standards:
• ISO 1436-1 Type 2SN / SAE J517 100R2AT / SAE J1942 / EN 853 Type 2SN
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
• 30 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Maximum Operating Temperature | Compatible Fitting | Division | Hose Inner Tube Material | Inside Diameter | Maximum Operating Pressure | Weight | Application | Hose Reinforcement Material | Specifications Met | Nominal Hose Inside Diameter | Outside Diameter | Media | Minimum Bend Radius | Cover Material | Minimum Operating Temperature | Pkg Qty/UOM | Pkg Qty | Mating Fitting Series | Inner Diameter | Working Pressure | Material | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Series | Hose Pressure Range | Hose Category | Mating End Fitting Series | Distinct Properties |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 302-12 | Backordered | 1122 in stock | $19.55/foot | FT | FT | -12 | 212 °F | 30 Series | Hose Products Division | Synthetic Rubber | 19 mm | 21.5 MPa | 0.67 lb/ft | Lubricating Oils | 2 Braids of Steel Wire | SAE 100R2, Type AT | 19 mm | 29.4 mm | Petroleum Hydraulic Fluids | 9-1/2 inch | Synthetic Rubber | -40 °C | 175 FT | 175 | 43, 30 | 0.75 Inch | 3100 PSI (210 bar) | Rubber | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN | |
| 302-16 | Backordered | 1150 in stock | $28.30/foot | FT | FT | -16 | 100 °C | 43 Series | Hose Products Division | Synthetic Rubber | 25 mm | 16.5 MPa | 1.49 kg/m | Lubricating Oils | 2 Braids of Steel Wire | ABS | 25 mm | 38.1 mm | Lubricants | 12 inch | Synthetic Rubber | -40 °F | 125 FT | 125 | 43, 30 | 1 Inch | 2400 PSI (170 bar) | Rubber | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN | |
| 302-20 | 125 in stock | 1017 in stock | $41.76/foot | FT | FT | -20 | 212 °F | 30 Series | Hose Products Division | Synthetic Rubber | 1-1/4 inch | 1800 psi | 1.73 kg/m | Lubricating Oils | 2 Braids of Steel Wire | ABS | 31 mm | 47.1 mm | Lubricants | 16-1/2 inch | Synthetic Rubber | -40 °C | 50 FT | 50 | 43, 30 | 1.25 Inch | 1800 PSI (120 bar) | Rubber | Fluid Connector | Inch | Hose Products | 1.25 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN | |
| 302-24 | 117 in stock | 1027 in stock | $49.90/foot | FT | FT | -24 | 100 °C | 30 Series | Hose Products Division | Synthetic Rubber | 1-1/2 inch | 1300 psi | 2.14 kg/m | Lubricating Oils | 2 Braids of Steel Wire | USCG HF | 38 mm | 2.140 inch | Petroleum Hydraulic Fluids | 500 mm | Synthetic Rubber | -40 °C | 50 FT | 50 | 43, 30 | 1.5 Inch | 1300 PSI (90 bar) | Rubber | Fluid Connector | Inch | Hose Products | 1.5 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN | |
| 302-32 | 172 in stock | 338 in stock | $60.68/foot | FT | FT | -32 | 100 °C | 43 Series | Hose Products Division | Synthetic Rubber | 2 inch | 1150 psi | 2.96 kg/m | Petroleum Base Hydraulic Fluids | 2 Braids of Steel Wire | DNV | 51 mm | 2.640 inch | Petroleum Hydraulic Fluids | 25 inch | Synthetic Rubber | -40 °C | 50 FT | 50 | 43, 30 | 2 Inch | 1150 PSI (80 bar) | Rubber | Fluid Connector | Inch | Hose Products | 2 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN | |
| 302-4 | Backordered | 1819 in stock | $9.00/foot | FT | FT | -4 | 100 °C | 30 Series | Hose Products Division | Synthetic Rubber | 1/4 inch | 5800 psi | 0.26 lb/ft | Lubricating Oils | 2 Braids of Steel Wire | DNV | 6 mm | 0.590 inch | Petroleum Hydraulic Fluids | 100 mm | Synthetic Rubber | -40 °C | 350 FT | 350 | 43, 30 | 0.25 Inch | 5800 PSI (400 bar) | Rubber | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | > 5000 PSI (345 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN | |
| 302-5 | Backordered | 23 in stock | $10.04/foot | FT | FT | -5 | 212 °F | 43 Series | Hose Products Division | Synthetic Rubber | 8 mm | 5000 psi | 0.42 kg/m | Petroleum Base Hydraulic Fluids | 2 Braids of Steel Wire | EN 853, Type 2SN | 8 mm | 16.6 mm | Petroleum Hydraulic Fluids | 4-1/2 inch | Synthetic Rubber | -40 °C | 325 FT | 325 | 0.313 Inch | 5000 PSI (340 bar) | Rubber | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | > 5000 PSI (345 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | Worldwide DIN | |||
| 302-6 | Backordered | 2234 in stock | $10.48/foot | FT | FT | -6 | 212 °F | 30 Series | Hose Products Division | Synthetic Rubber | 10 mm | 33 MPa | 0.55 kg/m | Petroleum Base Hydraulic Fluids | 2 Braids of Steel Wire | ISO 1436, Type 2SN | 10 mm | 19 mm | Petroleum Hydraulic Fluids | 5 inch | Synthetic Rubber | -40 °F | 300 FT | 300 | 43, 30 | 0.375 Inch | 4750 PSI (330 bar) | Rubber | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN | |
| 302-8 | Backordered | 1157 in stock | $12.05/foot | FT | FT | -8 | 212 °F | 30 Series | Hose Products Division | Synthetic Rubber | 1/2 inch | 28 MPa | 0.45 lb/ft | Petroleum Base Hydraulic Fluids | 2 Braids of Steel Wire | ISO 1436, Type 2SN | 12 mm | 22.3 mm | Lubricants | 180 mm | Synthetic Rubber | -40 °F | 250 FT | 250 | 43, 30 | 0.5 Inch | 4000 PSI (280 bar) | Rubber | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic | 302 | Medium | Hydraulic Industry Standard | 43, 30 | Worldwide DIN |
