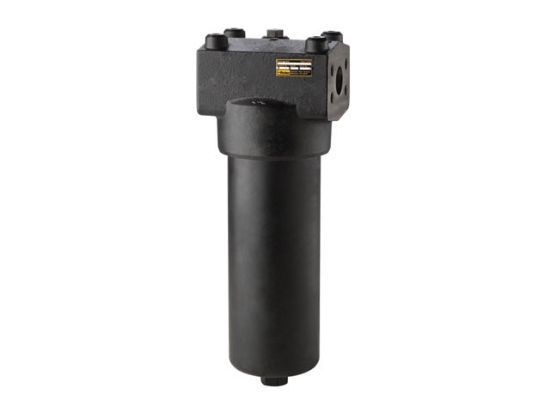

WPF502QHVM2KY242 - WPF5 Series High Pressure Filter

WPF5 Series Hydraulic and Lube Oil High Pressure Filter

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU WPF502QHVM2KY242

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
UOM	EA	Port	1 1/2 Flange face - SAE Code 62
Operating Temperature	-15F to 250F (-26C to 121C)	Element Length	Single
Nominal Filter Rating	2 micron (2000 PSID High Collapse)	Nominal Flow Rating	120 GPM (455 LPM)
Seals	Fluorocarbon	Indicator Type	Visual - Automatic Reset
Bypass	50 PSI (3.5 bar)	Max Pressure - Non-Fatigue MAOP	7000 psi (483 bar)
Replacement Element	941052Q	Options	No Bypass
Max Pressure - Fatigue MAOP	6000 psi (414 bar)	Port Type	Flange face - SAE Code 62
Parker Division	Hydraulic Filter	Max Pressure - Non-Fatigue MAOP	7000 PSI (483 bar)
Nominal Filter Micron Rating	2 micron (2000 PSID High Collapse)	Nominal Flow Rating	120 GPM (455 LPM)
Operating Temperature	-15F to 250F (-26C to 121C)	Options	No Bypass
Max Pressure - Fatigue MAOP	6000 PSI (414 bar)	Bypass	50 PSI (3.5 bar)
Series	WPF5	Filter Media Type	Microglass III
Port	1 1/2 Flange face - SAE Code 62	Filter Media Code	02QH
Indicator Type	Visual - Automatic Reset	Filter Type	High Pressure Filter
Element Length	Single	Seals	Fluorocarbon
Parker Group	Filtration
