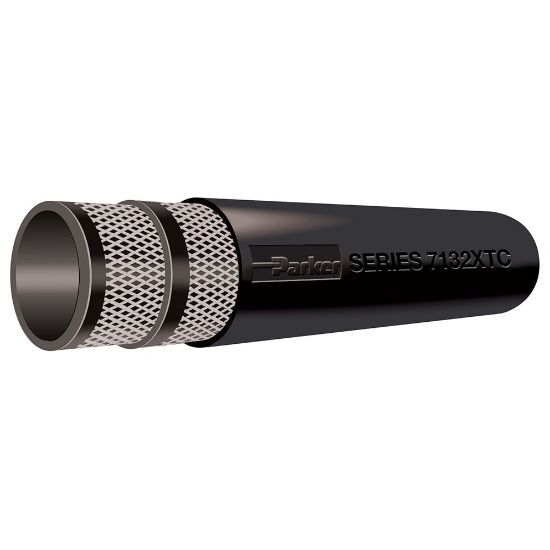

7132XTC-1000125 - X-TREME™ Low Temperature Liquid Petroleum Gas LPG Hose, Series 7132XTC

X-treme Low Temperature Liquid Petroleum Gas LPG Hose is designed for delivery, supply and transfer of propane in commercial and industrial applications to -65°F and 350 psi, Series 7132XTC

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 7132XTC-1000125

$18.58/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Standard Pack Qty (ft)	1 x 125	Maximum Working Pressure (psi)	350
Compatible Fitting	7661 Series	Maximum Operating Temperature	82 °C
Hose Inner Tube Material	Black	Division	Hose Products Division
Cover Material	Chloroprene Rubber (CR)	Media	LPG
Application	Liquefied Petroleum Gas (LPG)	Package Type	Carton
Minimum Bend Radius	8 inch	Minimum Operating Temperature	-53 °C
Hose Reinforcement Material	4 Plies of Textile	Specifications Met	CSA 8.1, Type I
Cover Structure	Perforated	Cover Color	Black
Weight	0.63 lb/ft	Maximum Operating Pressure	24.1 bar
Inside Diameter	1 inch	Outside Diameter	1.5 inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
