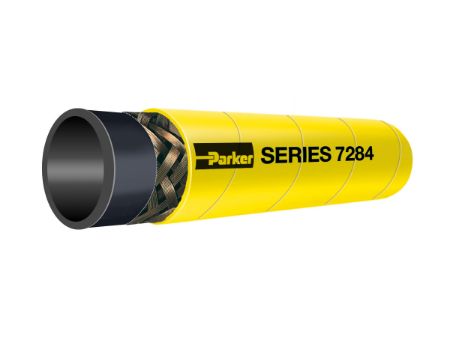

YELLOW BIRD® High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7284

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 7284 Yellow Bird High Pressure Wire Braid Multipurpose Oil Resistant Hose provides excellent service across multiple high pressure, heavy duty applications. The hose is durable, crush resistant and flame retardant to protect operators from fire hazards. The distinctive bright yellow nitrile/PVC cover is easily identified, and resists abrasion, oil and weathering to provide maximum performance. Series 7284 is qualified with permanent crimp couplings for a safe and secure connection to provide robust service in challenging applications.

Markets:
• Construction
• General Industrial
• Mining

Features/Benefits:
• Tube: Black SBR for economical service to 212°F.
• Reinforcement: One wire braid for extreme strength and durability.
• Cover: Yellow nitrile/PVC for abrasion, flame, oil and weathering resistance; perforated.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:
• Air
• Mild chemicals
• Water
• Heavy duty air compressors
• Quarries

Industry Standards:
• MSHA

Safety/Technical:
• Click here to access CrimpSource® for current crimp specifications.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (inch)	Standard Pack Qty (ft)	Maximum Working Pressure (psi)	Application	Specifications Met	Cover Structure	Minimum Bend Radius	Minimum Operating Temperature	Hose Reinforcement Material	Cover Color	Weight	Package Type	Outside Diameter	Inside Diameter	Maximum Operating Pressure	Compatible Fitting	Maximum Operating Temperature	Hose Inner Tube Material	Division	Cover Material	Media	Working Pressure	Inner Diameter	Package Type	Pkg Qty	Pkg Qty/UOM	Color	Parker Group	Inch/Metric	Parker Division	Inner Diameter Inch/mm	Inner Diameter	Color	Hose Pressure Range	Series	Trade Name	Hose Category
7284-381	Backordered	171 in stock	POR	FT	FT	3/8	500	1500	Multipurpose	MSHA	Perforated	152.4 mm	-20 °F	1 Braid of Wire	Yellow	0.23 lb	Reel	0.700 inch	3/8 inch	1500 psi	HY Series	212 °F	Styrene Butadiene Rubber (SBR)	Hose Products Division	Nitrile/PVC	Water	1500 PSI (100 bar)	0.375 Inch	Reel	500	500 FT	Yellow	Fluid Connector	Inch	Hose Products	Inch	0.375 Inch	Yellow	High	7284	YELLOW BIRD®	High Pressure Wire Braid Mine and Multipurpose
7284-501	Backordered	1026 in stock	POR	FT	FT	1/2	425	1000	Air	MSHA	Wrapped	177.8 mm	-20 °F	1 Braid of Wire	Yellow	0.17 kg	Reel	0.969 inch	1/2 inch	68.9 bar	7661 Series	100 °C	Styrene Butadiene Rubber (SBR)	Hose Products Division	Nitrile/PVC	Water	1000 PSI (70 bar)	0.375 Inch	Reel	500	500 FT	Yellow	Fluid Connector	Inch	Hose Products	Inch	0.5 Inch	Yellow	High	7284	YELLOW BIRD®	High Pressure Wire Braid Mine and Multipurpose
7284-501050	Backordered	Backordered	POR	FT	FT	1/2	50	1000	Multipurpose	MSHA	Perforated	7 inch	-20 °F	1 Braid of Wire	Yellow	0.37 lb	Carton	24.6 mm	12.7 mm	1000 psi	HY Series	100 °C	Styrene Butadiene Rubber (SBR)	Hose Products Division	Nitrile/PVC	Water	1000 PSI (70 bar)	0.375 Inch	Carton	50	50 FT	Yellow	Fluid Connector	Inch	Hose Products	Inch	0.5 Inch	Yellow	High	7284	YELLOW BIRD®	High Pressure Wire Braid Mine and Multipurpose
7284-751100	Backordered	Backordered	POR	FT	FT	3/4	100	1000	Air	MSHA	Wrapped	9.5 inch	-20 °F	1 Braid of Wire	Yellow	0.5 lb	Carton	31 mm	3/4 inch	68.9 bar	HY Series	100 °C	Black	Hose Products Division	Nitrile/PVC	Water	1000 PSI (70 bar)	0.75 Inch	Carton	100	100 FT	Yellow	Fluid Connector	Inch	Hose Products	Inch	0.75 Inch	Yellow	High	7284	YELLOW BIRD®	High Pressure Wire Braid Mine and Multipurpose
