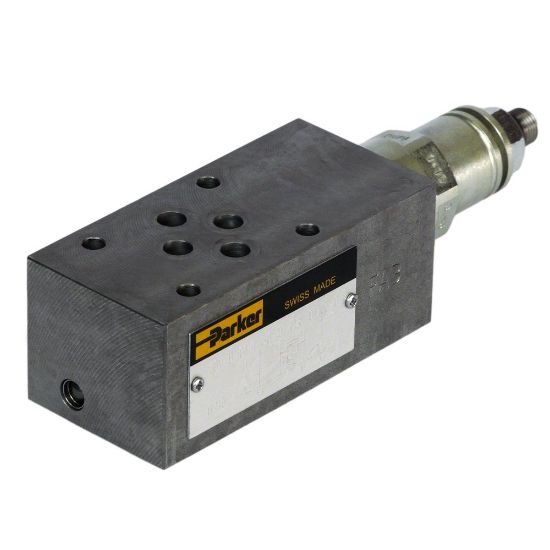

ZDVB025S0D5

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU ZDVB025S0D5

$1,202.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Water Glycol
Material	Steel	Port Connection	NG10 / CETOP 05
Flow Rate	140 lpm, 140 Bar	Operation Type	Pilot
Function	Pressure Reliefed from B-T	Seal Material	FPM
Minimum Operating Temperature	-20 °C	Pressure Control Range	315 Bar
Maximum Operating Temperature	60 °C	Actuation Type	Manual
Maximum Pressure Setting	315 bar	Adjustment Mechanism	Hexagon Screw with Lock Nut
Mounting Option	Sandwich Plate	Product Series	Pressure valve
