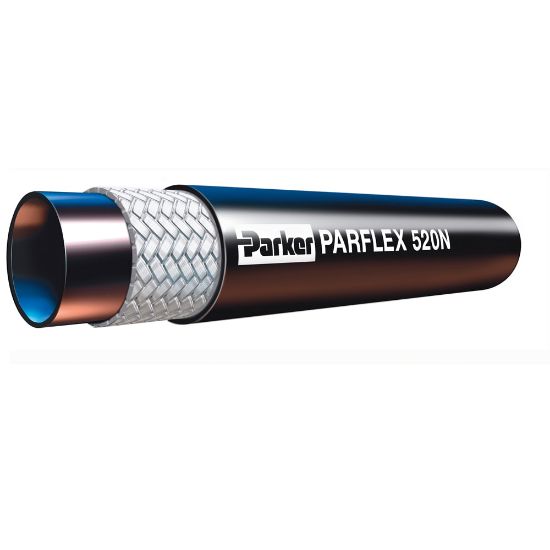

520N-5 - 100R8 Hydraulic Hose – 520N/528N

Name: 520N-5 - 100R8 Hydraulic Hose – 520N/528N
SKU: 520N-5
Price: 9.42 USD
Availability: InStock

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

Manufacturer: Parker

Availability:

7 in stock

Springfield, MO

Partner Available:

817 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 520N-5

$9.42/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Hose Type	Standard	Inside Diameter	5/16 inch
Maximum Operating Pressure	310 bar	Outside Diameter	14.5 mm
Weight	0.08 lb/ft	Size	-5
Division	Parflex Division	Compatible Fitting	56 Series
Maximum Operating Temperature	100 °C	Media	Welding Gases (Nitrogen)
Design Factor	4:1	Hose Inner Tube Material	Polyamide (PA)
Minimum Bend Radius	2.5 inch	Minimum Operating Temperature	-40 °F
Product Style	Standard	Hose Reinforcement Material	Aramid Fiber
Cover Material	Polyurethane	Specifications Met	DNV GL
Application	Fluid Handling
