100R8 Hydraulic Hose – 520N/528N

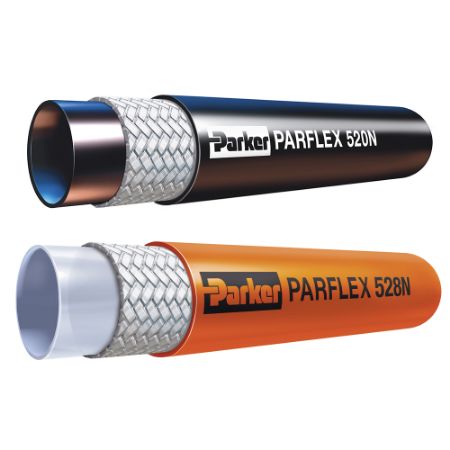

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in a 100R8 hose but with a lighter weight and smaller O.D. than an 100R2 hose. It replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This flexible hydraulic hose is available in single, twin-line and multi-line constructions and features a smaller bend radius than 3TR8/3800 hose. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 520N/528N High Pressure Hose combines a variety of advantages to fulfill application requirements in hydraulic equipment, pneumatic circuits and fluid handling applications.
Markets:
• Machine Tool
• Industrial
• Industrial Pneumatic
• Construction
• Mobile Equipment
Features/Benefits:
• Lighter and smaller O.D. than 100R2 for ease of assembly
• Available as a bonded hose assembly.
• Fast response
• Working pressure up to 5,000 psi
Applications:
• Hydraulic and pneumatic circuits and systems
• Ideal in hot water applications
•Nitrogen Gas
• Material Handling Equipment
• Machine tool
• Construction Equipment
Certifications/Compliance:
• Meets/exceeds SAE 100R8
• 520N MSHA accepted
• 528N meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Twin and multi-line designs available
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Machine Tool
• Industrial
• Industrial Pneumatic
• Construction
• Mobile Equipment
Features/Benefits:
• Lighter and smaller O.D. than 100R2 for ease of assembly
• Available as a bonded hose assembly.
• Fast response
• Working pressure up to 5,000 psi
Applications:
• Hydraulic and pneumatic circuits and systems
• Ideal in hot water applications
•Nitrogen Gas
• Material Handling Equipment
• Machine tool
• Construction Equipment
Certifications/Compliance:
• Meets/exceeds SAE 100R8
• 520N MSHA accepted
• 528N meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Twin and multi-line designs available
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Hose Type | Size | Division | Maximum Operating Temperature | Hose Inner Tube Material | Compatible Fitting | Design Factor | Media | Cover Material | Hose Reinforcement Material | Minimum Bend Radius | Specifications Met | Product Style | Minimum Operating Temperature | Application | Inside Diameter | Weight | Maximum Operating Pressure | Outside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 520N-3 | 1296 in stock | 2325 in stock | $6.29/foot | FT | 3/16 | Standard | -3 | Parflex Division | 100 °C | Polyamide (PA) | 56 Series | 4:1 | Welding Gases (Nitrogen) | Polyurethane | Aramid Fiber | 38 mm | MSHA | Standard | -40 °C | Industrial | 5 mm | 0.05 lb/ft | 5000 psi | 10.9 mm | |
| 520N-4 | 1215 in stock | 11255 in stock | $7.04/foot | FT | 1/4 | Standard | -4 | Parflex Division | 212 °F | Polyamide (PA) | 56 Series | 4:1 | Water | Polyurethane | Aramid Fiber | 2 inch | DNV GL | Standard | -40 °C | Hydraulics | 6 mm | 0.07 lb/ft | 34.5 MPa | 0.510 inch | |
| 520N-5 | 7 in stock | 817 in stock | $9.42/foot | FT | 5/16 | Standard | -5 | Parflex Division | 100 °C | Polyamide (PA) | 56 Series | 4:1 | Welding Gases (Nitrogen) | Polyurethane | Aramid Fiber | 2.5 inch | DNV GL | Standard | -40 °F | Fluid Handling | 5/16 inch | 0.08 lb/ft | 310 bar | 14.5 mm | |
| 520N-6 | 1172 in stock | 7143 in stock | $8.39/foot | FT | 3/8 | Standard | -6 | Parflex Division | 212 °F | Polyamide (PA) | 56 Series | 4:1 | Air | Polyurethane | Aramid Fiber | 64 mm | MSHA | Standard | -40 °C | Manufacturing | 3/8 inch | 0.08 lb/ft | 4000 psi | 16.5 mm | |
| 520N-8 | 1428 in stock | 4739 in stock | $10.75/foot | FT | 1/2 | Standard | -8 | Parflex Division | 100 °C | Polyamide (PA) | 56 Series | 4:1 | Petroleum Hydraulic Fluids | Polyurethane | Aramid Fiber | 102 mm | DNV GL | Standard | -40 °F | Pneumatics | 13 mm | 0.14 lb/ft | 24.1 MPa | 0.810 inch | |
| 528N-4 | Backordered | 1811 in stock | $11.36/foot | FT | 1/4 | Non Conductive | -4 | Parflex Division | 212 °F | Polyamide (PA) | 56 Series | 4:1 | Air | Polyurethane | Aramid Fiber | 2 inch | SAE 100R8 | Non-Conductive | -40 °C | Forestry | 1/4 inch | 0.07 lb/ft | 34.5 MPa | 0.510 inch | |
| 528N-6 | Backordered | 2219 in stock | $12.37/foot | FT | 3/8 | Non Conductive | -6 | Parflex Division | 100 °C | Polyamide (PA) | 56 Series | 4:1 | Petroleum Hydraulic Fluids | Polyurethane | Aramid Fiber | 2-1/2 inch | DNV GL | Non-Conductive | -40 °C | Hydraulics | 10 mm | 0.08 lb/ft | 4000 psi | 16.5 mm | |
| 528N-8 | 188 in stock | 2569 in stock | $12.83/foot | FT | 1/2 | Non Conductive | -8 | Parflex Division | 212 °F | Polyamide (PA) | 56 Series | 4:1 | Water | Polyurethane | Aramid Fiber | 102 mm | SAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.) | Non-Conductive | -40 °F | Pneumatics | 1/2 inch | 0.20 kg/m | 3500 psi | 0.810 inch |
