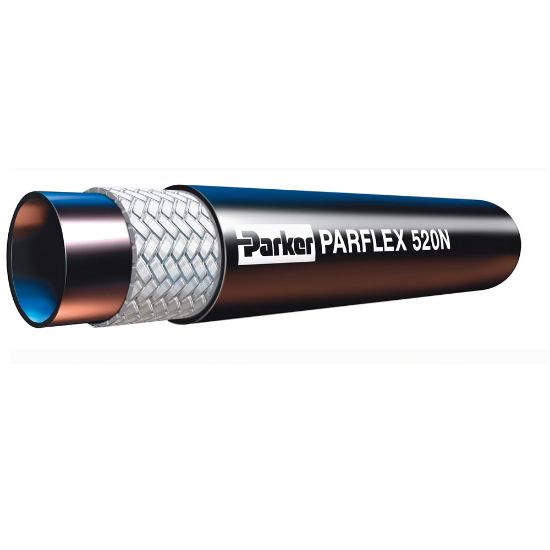

520N-8 - 100R8 Hydraulic Hose – 520N/528N

Name: 520N-8 - 100R8 Hydraulic Hose – 520N/528N
SKU: 520N-8
Price: 10.75 USD
Availability: InStock

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

Manufacturer: Parker

Availability:

1428 in stock

Springfield, MO	346
Kansas City, KS	327
Wichita, KS	203
Olivette, MO	177
Kansas City, KS	160
TOPEKA, KS	141
Joplin, MO	43
Decatur, IL	29

Partner Available:

4739 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 520N-8

$10.75/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Hose Type	Standard	Division	Parflex Division
Compatible Fitting	56 Series	Maximum Operating Temperature	100 °C
Size	-8	Media	Petroleum Hydraulic Fluids
Design Factor	4:1	Hose Inner Tube Material	Polyamide (PA)
Minimum Bend Radius	102 mm	Product Style	Standard
Cover Material	Polyurethane	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	Aramid Fiber	Specifications Met	DNV GL
Application	Pneumatics	Outside Diameter	0.810 inch
Maximum Operating Pressure	24.1 MPa	Inside Diameter	13 mm
Weight	0.14 lb/ft
