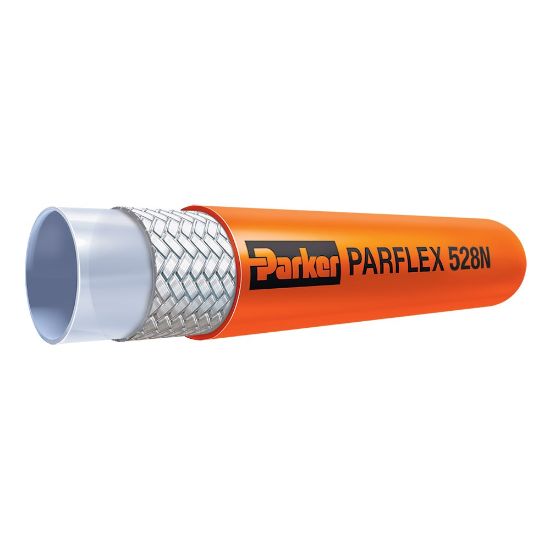

528N-6 - 100R8 Hydraulic Hose – 520N/528N

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	2219 in stock

SKU 528N-6

$12.37/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Type	Non Conductive
Hose I.D. (inch)	3/8	Inside Diameter	10 mm
Maximum Operating Pressure	4000 psi	Outside Diameter	16.5 mm
Weight	0.08 lb/ft	Maximum Operating Temperature	100 °C
Size	-6	Division	Parflex Division
Compatible Fitting	56 Series	Design Factor	4:1
Hose Inner Tube Material	Polyamide (PA)	Media	Petroleum Hydraulic Fluids
Hose Reinforcement Material	Aramid Fiber	Minimum Bend Radius	2-1/2 inch
Product Style	Non-Conductive	Minimum Operating Temperature	-40 °C
Cover Material	Polyurethane	Application	Hydraulics
Specifications Met	DNV GL
