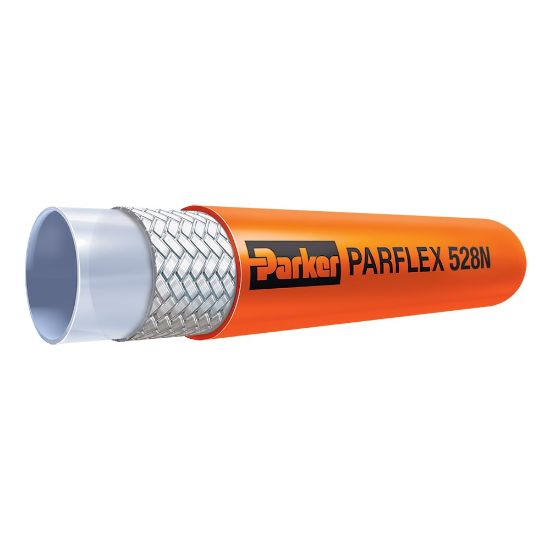

528N-8 - 100R8 Hydraulic Hose – 520N/528N

Name: 528N-8 - 100R8 Hydraulic Hose – 520N/528N
SKU: 528N-8
Price: 12.83 USD
Availability: InStock

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

Manufacturer: Parker

Availability:

188 in stock

Springfield, MO

188

Partner Available:

2569 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 528N-8

$12.83/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Type	Non Conductive
Hose I.D. (inch)	1/2	Product Style	Non-Conductive
Application	Pneumatics	Hose Reinforcement Material	Aramid Fiber
Specifications Met	SAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.)	Outside Diameter	0.810 inch
Weight	0.20 kg/m	Maximum Operating Pressure	3500 psi
Inside Diameter	1/2 inch	Maximum Operating Temperature	212 °F
Division	Parflex Division	Size	-8
Compatible Fitting	56 Series	Hose Inner Tube Material	Polyamide (PA)
Design Factor	4:1	Media	Water
Cover Material	Polyurethane	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	102 mm
