*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CCP115D - 1/2" Super Coil

Name: CCP115D - 1/2" Super Coil
SKU: CCP115D
Price: 51.47 USD
Availability: InStock

Parker's broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:

24 in stock

Olivette, MO

Partner Available:

107 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CCP115D

$51.47/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Din
Diode	No	Voltage	115 VAC
Power Consumption	19 - High Watt	Flow Rate	n/a
Weight	0.44 lb	Maximum Operating Pressure	n/a
Actuation Type	n/a	Resistance	576 Ω
Division	Hydraulic Systems Division	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Coil Type	Puissant
For Fluid Type	n/a	Maximum Flow Rate	n/a
Seal Material	n/a	Maximum Operating Temperature	392 °F
Function	1/2" Super Coil	Duty Cycle	Continuous @ 100% Voltage
Minimum Operating Temperature	-40 °F	Current	0.2 A

Customers who bought this item also bought

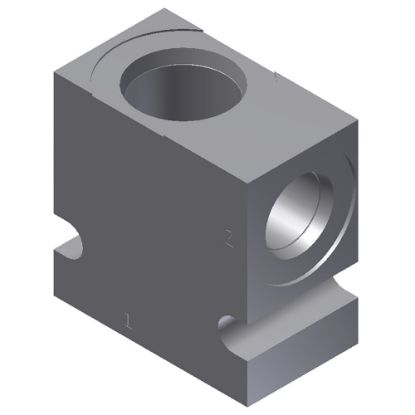

B08-2-6T - Standard Bodies
