Picture of DSH081NR - 2 Way Poppet Type Solenoid Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DSH081NR - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).
Manufacturer: Parker
Availability:
37 in stock
Olivette, MO33
Wichita, KS4
Partner Available:28 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU DSH081NR
$86.13/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
ConfigurationNormally OpenFlow Rate8 GAL/MIN, 30 L/MIN
Maximum Inlet Pressure Rating5000 PSI, 350 BARActuation TypeElectrical
Wire Mesh Screen IncludedNoDivisionHydraulic Systems Division
Operating Temperature-35 to +200 °FFlow Rate30 L/min
Input Voltage85% of rated voltage at 72°F (20°C) minActuation TypeElectrical
Maximum Flow Rate8 Gal/minMaximum Operating Pressure350 bar
Maximum Operating Temperature+93 °CMinimum Operating Temperature-35 °F
Body MaterialN/ASeal MaterialD-Ring (Standard)
Flow DirectionSide to Nose (2-1)Weight0.25 lb
Mounting TypeScrew in cartridge valveOperation TypeSolenoid operated
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4ConfigurationNormally Open
For Fluid TypeMineral-based or synthetic hydraulic fluidsFunction2-way
Coil Type1/2" Super CoilMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Leak Rate5 drops/minCavity SizeC08-2
Valve MaterialAll parts steel. All operating parts hardened steelInstallation Torque32-36 lb-ft
Maximum Inlet Pressure Rating350 barAdjustment MechanismN/A
Override FunctionalityN/AResponse Time50 ms
Wire Mesh Screen IncludedNoCoil Nut Tightening Torque7-10 Nm
Free Reverse FlowYes
Customers who bought this item also bought

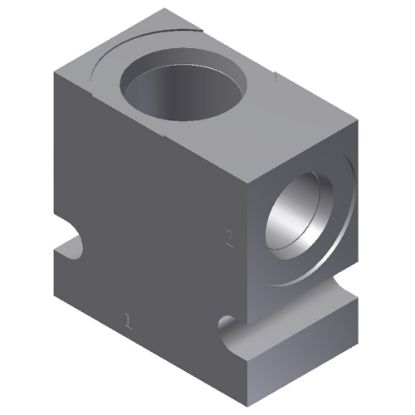

Picture of B08-2-6T - Standard Bodies

B08-2-6T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.
$62.86/each
Picture of CCS024D - 1/2" Super Coil

CCS024D - 1/2" Super Coil

Parker's broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.
$33.61/each

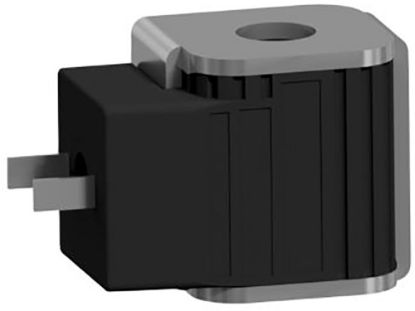

Picture of CCP115D - 1/2" Super Coil
