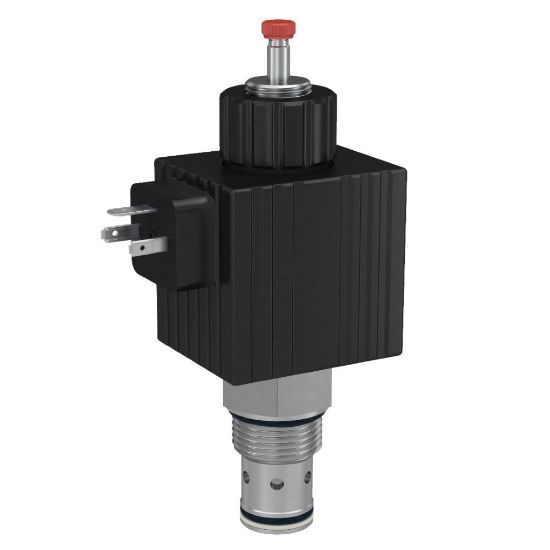

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DF122C14 - 2 Way Flow Control Proportional Valves

Name: DF122C14 - 2 Way Flow Control Proportional Valves
SKU: DF122C14
Price: 284.93 USD
Availability: InStock

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:

12 in stock

Wichita, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DF122C14

$284.93/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	14 GAL/MIN, 53 L/MIN
Actuation Type	Electrical, Manual	Configuration	Normally Closed
Seal Material	Nitrile	Actuation Type	Electrical, Manual
Body Material	N/A	Flow Rate Accuracy	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Coil Nut Tightening Torque	Finger Tight
Maximum Operating Pressure	3000 psi	Weight	0.7 lb
Variation of Opening Point	20%-30% of Input Signal	Operating Temperature	-30 to +250 °F
Flow Rate	53 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	1" DS Coil High Watt	Frequency	100-400 Hz
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	14.0 Gal/min
Connection Type	N/A	Division	Hydraulic Systems Division
Installation Torque	21 lb-ft	Operation Type	Solenoid operated, Manually operated
Flow Direction	Side to Nose (2 - 1)	Connection Size	N/A
Wire Mesh Screen Included	No	Function	Proportional Flow Control/Regulator
Variation of Closing Point	N/A	Hysteresis	4%
Minimum Pressure Differential	N/A psi	Maximum Operating Temperature	+250 °F
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Leak Rate	250 @ 3000 PSI (210 BAR) cm3/min	Maximum Inlet Pressure Rating	210 bar
Override Functionality	Push Type w/Extended Rod	Power Consumption	42 W
Cavity Size	C12-2	Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A
Minimum Operating Temperature	-34 °C
