DSL081NR - 2 Way Poppet Type Solenoid Valve

Name: DSL081NR - 2 Way Poppet Type Solenoid Valve
SKU: DSL081NR
Price: 68.73 USD
Availability: InStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:

34 in stock

Olivette, MO

Partner Available:

38 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DSL081NR

$68.73/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Division	Hydraulic Systems Division
Body Material	N/A	Installation Torque	23-27 lb-ft
Weight	0.25 lb	Operation Type	Solenoid operated
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-35 to +200 °F	Configuration	Normally Open
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Coil Nut Tightening Torque	7-10 Nm
Maximum Operating Pressure	250 bar	Leak Rate	5 drops/min
Maximum Operating Temperature	+93 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	30 L/min
Coil Type	1/2" Super Coil	Flow Direction	Side to Nose (2-1)
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Maximum Inlet Pressure Rating	3600 psi	Function	2-way
Wire Mesh Screen Included	No	Seal Material	D-Ring (Standard)
Mounting Type	Screw in cartridge valve	Flow Rate	8 Gal/min
Free Reverse Flow	Yes	Adjustment Mechanism	N/A
Cavity Size	C08-2	Minimum Operating Temperature	-37 °C
Override Functionality	N/A

Customers who bought this item also bought

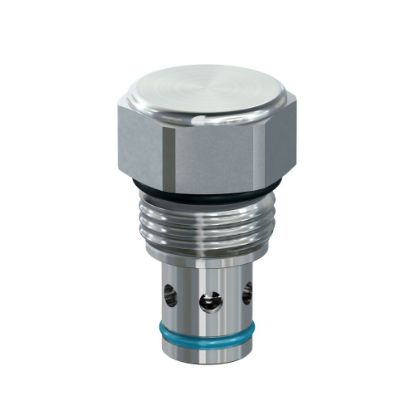

CVH081P - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

$17.84/each

RDH082S50 - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

$59.81/each

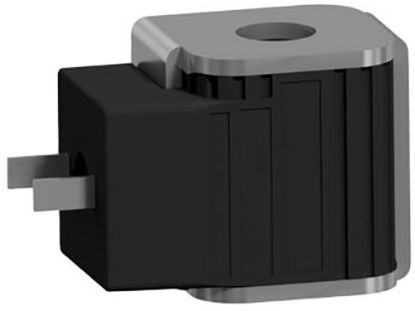

CCP024D - 1/2" Super Coil
