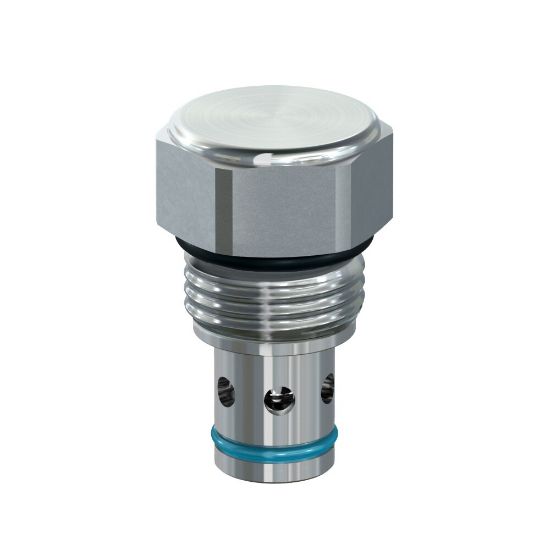

Picture of CVH081P - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CVH081P - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Manufacturer: Parker
Availability:
21 in stock
Olivette, MO20
Wichita, KS1
Partner Available:354 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU CVH081P
$17.84/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialD-Ring (Standard)
Cracking Pressure5 PSI, 0.3 BARMaximum Flow Rate10 GAL/MIN, 38 L/MIN
FunctionStandard CheckFlow Direction1-2 Free Flow
Cracking Pressure5 psiMinimum Operating Temperature-37 °C
Cavity SizeC08-2Operating Temperature-37 to 93 °C
Flow Raten/aFilter Efficiency RatingSAE Class 4
Actuation TypePressure SensingMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure350 barInstallation Torque43-49 Nm
Body Materialn/aWeight0.1 kg
DivisionHydraulic Systems DivisionDivisionHydraulic Cartridge Systems Division
Maximum Flow Rate10 Gal/minMaximum Operating Temperature93 °C
Leak Rate2For Fluid TypeMineral-based Hydraulic Fluids
Seal MaterialD-Ring (Standard)Valve MaterialHardened Steel
Maximum Inlet Pressure Rating5000 psi
Customers who bought this item also bought

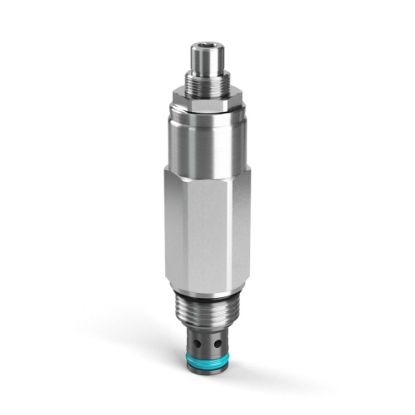

Picture of RDH082S50 - Direct Acting Relief Valves

RDH082S50 - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).
$59.81/each

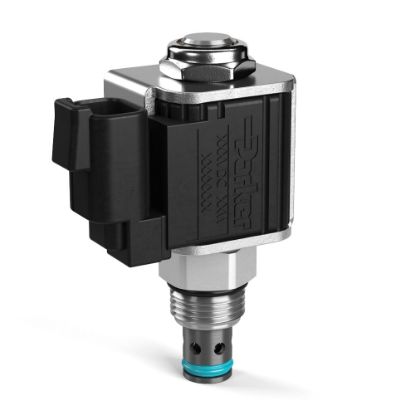

Picture of DSL081NR - 2 Way Poppet Type Solenoid Valve

DSL081NR - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).
$68.73/each

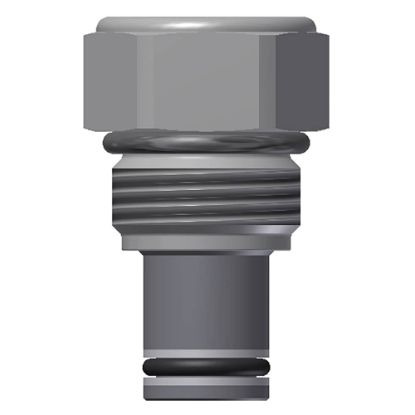

Picture of P08-2 - Cavity Plugs

P08-2 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.
$68.73/each
Product resources

Literature and Reference Materials
