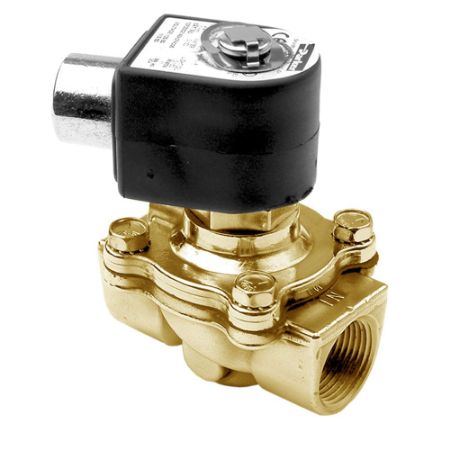

22/23 Series - General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | Media | Function | Coil Type | Port Size | Port Type | Installation | Orifice Size | Body Material | Input Voltage | Seal Material | Actuation Type | Insulation Class | Power Consumption | Specifications Met | Valve Configuration | Main Flow Coefficient | Ingress Protection Rating | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Minimum Pressure Differential | Minimum Pressure Differential | Seal Material | Media | Function | Main Flow Coefficient | Installation | Port Size | Input Voltage | Power Consumption | Valve Configuration | Specifications Met | Maximum Fluid Temperature | Orifice Size | Preventive Maintenance Kit | Port Type | Maximum Pressure Differential | Actuation Type | Body Material | Ingress Protection Rating | Insulation Class | Maximum Ambient Temperature | Division | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 08F23C2140ACF | Backordered | 4 in stock | $238.43/each | EA | General Purpose | Normally Closed | Requires Coil from Chart 4 | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | Pressure Vessel Only | NBR | Direct Lift | N/A | 11.0 | N/A | 2 Way | 4.0 | N/A | 180.0 | 08F23C2140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 4.0 Cv | IOM 7321 | 1/2 inch | Pressure Vessel Only | 11.0 W | 2 Way | N/A | 180.0 °F | 5/8 inch | 08F23C2140ACFR | NPT | 150.0 psi | Direct Lift | Brass | N/A | N/A | 130.0 °F | Fluid Control Division | Requires Coil from Chart 4 | |
| 08F23C2140ACF4C01 | Backordered | Backordered | $255.72/each | EA | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | 24/60 | NBR | Direct Lift | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F23C2140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 4.0 Cv | IOM 7321 | 1/2 inch | 24/60 VAC | 6.0 W | 2 Way | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 180.0 °F | 5/8 inch | 08F23C2140ACFR | NPT | 150.0 psi | Direct Lift | Brass | NEMA 4,4X | Class F | 130.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 08F23C2140ACF4C05 | 1 Limited Stock | 6 in stock | $255.74/each | EA | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | 120/60, 110/50 | NBR | Direct Lift | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F23C2140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 4.0 Cv | IOM 7321 | 1/2 inch | 120/60, 110/50 VAC | 11.0 W | 2 Way | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 180.0 °F | 5/8 inch | 08F23C2140ACFR | NPT | 150.0 psi | Direct Lift | Brass | NEMA 4,4X | Class F | 130.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 08F23C2140ACFSB05 | Backordered | Backordered | $274.77/each | EA | General Purpose | Normally Closed | Splice Box w/ 6" Leads | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | 120/60, 110/50 | NBR | Direct Lift | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 1 | 180.0 | 08F23C2140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 4.0 Cv | IOM 7321 | 1/2 inch | 120/60, 110/50 VAC | 6.0 W | 2 Way | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 180.0 °F | 5/8 inch | 08F23C2140ACFR | NPT | 150.0 psi | Direct Lift | Brass | NEMA 1 | Class F | 130.0 °F | Fluid Control Division | Splice Box w/ 6" Leads | |
| 08F23C2240A3HPH80 | Backordered | Backordered | $351.93/each | EA | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | 24.0 | FKM | Direct Lift | Class H | 11.5 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F23C2240A3HR | 77.0 | 40 (N/A Light Oil) | 0.0 | 0.0 psi | FKM | General Purpose | Normally Closed | 4.0 Cv | IOM 7321 | 1/2 inch | 24.0 VDC | 11.5 W | 2 Way | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 150.0 °F | 5/8 inch | 08F23C2240A3HR | NPT | 40 (N/A Light Oil) psi | Direct Lift | Brass | NEMA 4,4X | Class H | 77.0 °F | Fluid Control Division | DIN 43650A / ISO 4400 | |
| 08F23C6140ACF | Backordered | Backordered | $954.02/each | EA | General Purpose | Normally Closed | Requires Coil from Chart 4 | 1/2 | NPT | IOM 7321 | 5/8 | 316 Stainless Steel | Pressure Vessel Only | NBR | Direct Lift | N/A | 11.0 | N/A | 2 Way | 4.0 | N/A | 180.0 | 08F23C6140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 4.0 Cv | IOM 7321 | 1/2 inch | Pressure Vessel Only | 11.0 W | 2 Way | N/A | 180.0 °F | 5/8 inch | 08F23C6140ACFR | NPT | 150.0 psi | Direct Lift | 316 Stainless Steel | N/A | N/A | 130.0 °F | Fluid Control Division | Requires Coil from Chart 4 | |
| 08F23C6140ACF4C05 | Backordered | Backordered | $1,012.54/each | EA | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1/2 | NPT | IOM 7321 | 5/8 | 316 Stainless Steel | 120/60, 110/50 | NBR | Direct Lift | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F23C6140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 4.0 Cv | IOM 7321 | 1/2 inch | 120/60, 110/50 VAC | 11.0 W | 2 Way | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 180.0 °F | 5/8 inch | 08F23C6140ACFR | NPT | 150.0 psi | Direct Lift | 316 Stainless Steel | NEMA 4,4X | Class F | 130.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 08F23O2140A3F | Backordered | Backordered | $400.18/each | EA | General Purpose | Normally Open | Requires Coil from Chart 6 | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | Pressure Vessel Only | NBR | Direct Lift | N/A | 11.5 | N/A | 2 Way | 4.0 | N/A | 150.0 | 08F23O2140A3FR | 77.0 | 125 (80 Light Oil) | 0.0 | 0.0 psi | NBR | General Purpose | Normally Open | 4.0 Cv | IOM 7321 | 1/2 inch | Pressure Vessel Only | 11.5 W | 2 Way | N/A | 150.0 °F | 5/8 inch | 08F23O2140A3FR | NPT | 125 (80 Light Oil) psi | Direct Lift | Brass | N/A | N/A | 77.0 °F | Fluid Control Division | Requires Coil from Chart 6 | |
| 08F23O2140A3F4C75 | Backordered | Backordered | $471.75/each | EA | General Purpose | Normally Open | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | 12.0 | NBR | Direct Lift | Class F | 11.5 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F23O2140A3FR | 77.0 | 125 (80 Light Oil) | 0.0 | 0.0 psi | NBR | General Purpose | Normally Open | 4.0 Cv | IOM 7321 | 1/2 inch | 12.0 VDC | 11.5 W | 2 Way | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 150.0 °F | 5/8 inch | 08F23O2140A3FR | NPT | 125 (80 Light Oil) psi | Direct Lift | Brass | NEMA 4,4X | Class F | 77.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 08F23O2140ACF | Backordered | Backordered | $399.53/each | EA | General Purpose | Normally Open | Requires Coil from Chart 4 | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | Pressure Vessel Only | NBR | Direct Lift | N/A | 11.0 | N/A | 2 Way | 4.0 | N/A | 150.0 | 08F23O2140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Open | 4.0 Cv | IOM 7321 | 1/2 inch | Pressure Vessel Only | 11.0 W | 2 Way | N/A | 150.0 °F | 5/8 inch | 08F23O2140ACFR | NPT | 150.0 psi | Direct Lift | Brass | N/A | N/A | 130.0 °F | Fluid Control Division | Requires Coil from Chart 4 | |
| 08F23O2140ACF4C05 | Backordered | Backordered | $471.74/each | EA | General Purpose | Normally Open | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | 120/60, 110/50 | NBR | Direct Lift | Class F | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F23O2140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Open | 4.0 Cv | IOM 7321 | 1/2 inch | 120/60, 110/50 VAC | 11.0 W | 2 Way | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 150.0 °F | 5/8 inch | 08F23O2140ACFR | NPT | 150.0 psi | Direct Lift | Brass | NEMA 4,4X | Class F | 130.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 08F23O2140ACFPH05 | Backordered | Backordered | $472.92/each | EA | General Purpose | Normally Open | DIN 43650A / ISO 4400 | 1/2 | NPT | IOM 7321 | 5/8 | BRASS | 120/60, 110/50 | NBR | Direct Lift | Class F | 11.0 | UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F23O2140ACFR | 130.0 | 150.0 | 0.0 | 0.0 psi | NBR | General Purpose | Normally Open | 4.0 Cv | IOM 7321 | 1/2 inch | 120/60, 110/50 VAC | 11.0 W | 2 Way | UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC | 150.0 °F | 5/8 inch | 08F23O2140ACFR | NPT | 150.0 psi | Direct Lift | Brass | NEMA 4,4X | Class F | 130.0 °F | Fluid Control Division | DIN 43650A / ISO 4400 | |
| 12F22C2148A3F4C80 | 2 Limited Stock | Backordered | $299.02/each | EA | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | 24.0 | NBR | Internally Piloted | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 5.0 | NEMA 4,4X | 150.0 | 12F22C2148A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | 5.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | 24.0 VDC | 11.5 W | 2 Way | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 150.0 °F | 3/4 inch | 12F22C2148A3FR | NPT | 100 (125 Air, Inert Gas) psi | Internally Piloted | Brass | NEMA 4,4X | Class F | 77.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 12F22C2148A3FPH80 | Backordered | 2 Limited Stock | $390.00/each | EA | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | 24.0 | NBR | Internally Piloted | Class F | 11.5 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 5.0 | NEMA 4,4X | 150.0 | 12F22C2148A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | 5.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | 24.0 VDC | 11.5 W | 2 Way | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 150.0 °F | 3/4 inch | 12F22C2148A3FR | NPT | 100 (125 Air, Inert Gas) psi | Internally Piloted | Brass | NEMA 4,4X | Class F | 77.0 °F | Fluid Control Division | DIN 43650A / ISO 4400 | |
| 12F22C2148AAF | Backordered | 3 in stock | $293.46/each | EA | General Purpose | Normally Closed | Requires Coil from Chart 1 | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | Pressure Vessel Only | NBR | Internally Piloted | N/A | 6.0 | N/A | 2 Way | 5.0 | N/A | 180.0 | 12F22C2148AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 5.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | Pressure Vessel Only | 6.0 W | 2 Way | N/A | 180.0 °F | 3/4 inch | 12F22C2148AAFR | NPT | 135 (200 Air, Inert Gas) psi | Internally Piloted | Brass | N/A | N/A | 77.0 °F | Fluid Control Division | Requires Coil from Chart 1 | |
| 12F22C2148AAF4C01 | Backordered | Backordered | $292.99/each | EA | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | 24/60 | NBR | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 5.0 | NEMA 4,4X | 180.0 | 12F22C2148AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 5.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | 24/60 VAC | 6.0 W | 2 Way | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 180.0 °F | 3/4 inch | 12F22C2148AAFR | NPT | 135 (200 Air, Inert Gas) psi | Internally Piloted | Brass | NEMA 4,4X | Class F | 77.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 12F22C2148AAF4C05 | Backordered | Backordered | $293.11/each | EA | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | 120/60, 110/50 | NBR | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 5.0 | NEMA 4,4X | 180.0 | 12F22C2148AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 5.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | 120/60, 110/50 VAC | 6.0 W | 2 Way | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 180.0 °F | 3/4 inch | 12F22C2148AAFR | NPT | 135 (200 Air, Inert Gas) psi | Internally Piloted | Brass | NEMA 4,4X | Class F | 77.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | |
| 12F22C2148AAFPH01 | Backordered | Backordered | $294.43/each | EA | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | 24/60 | NBR | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 5.0 | NEMA 4,4X | 180.0 | 12F22C2148AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 5.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | 24/60 VAC | 6.0 W | 2 Way | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 180.0 °F | 3/4 inch | 12F22C2148AAFR | NPT | 135 (200 Air, Inert Gas) psi | Internally Piloted | Brass | NEMA 4,4X | Class F | 77.0 °F | Fluid Control Division | DIN 43650A / ISO 4400 | |
| 12F23C2148A3F | Backordered | Backordered | $243.28/each | EA | General Purpose | Normally Closed | Requires Coil from Chart 6 | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | Pressure Vessel Only | NBR | Direct Lift | N/A | 11.5 | N/A | 2 Way | 5.0 | N/A | 150.0 | 12F23C2148A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | Pressure Vessel Only | 11.5 W | 2 Way | N/A | 150.0 °F | 3/4 inch | 12F23C2148A3FR | NPT | 40 (N/A Light Oil) psi | Direct Lift | Brass | N/A | N/A | 77.0 °F | Fluid Control Division | Requires Coil from Chart 6 | |
| 12F23C2148A3F4C80 | Backordered | Backordered | $315.80/each | EA | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 3/4 | NPT | IOM 7321 | 3/4 | BRASS | 24.0 | NBR | Direct Lift | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 5.0 | NEMA 4,4X | 150.0 | 12F23C2148A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 | 0.0 psi | NBR | General Purpose | Normally Closed | 5.0 Cv | IOM 7321 | 3/4 inch | 24.0 VDC | 11.5 W | 2 Way | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 150.0 °F | 3/4 inch | 12F23C2148A3FR | NPT | 40 (N/A Light Oil) psi | Direct Lift | Brass | NEMA 4,4X | Class F | 77.0 °F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) |
