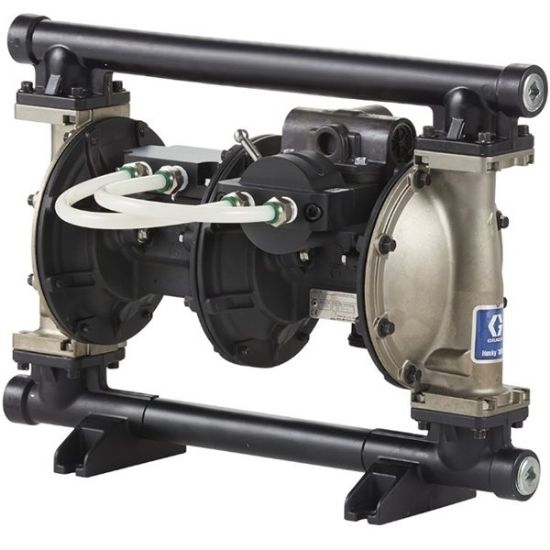

24W765

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24W765

Products specifications

Attribute name	Attribute value
UOM	EA	Air Exhaust Port Thread Gender	Female
Connection Type	Threaded	Type	Pneumatic
Ball Material	Geolast	Maximum Flow Rate	50 GPM
Series	1050HP	Material	Aluminum
Seat Material	Geolast	Maximum Solid Size	0.125 Inch
Fluid Inlet Size	1 Inch	Fluid Inlet Thread Type	BSPT
Diaphragm Compatible Material	Buna	Maximum Cycle Rate	140 CPM
Air Exhaust Port Thread Type	NPT	Model	Husky
Fluid Outlet Thread Type	BSPT	Air Inlet Thread Gender	Female
Air Exhaust Port Size	3/4 Inch	Maximum Air Consumption	95 SCFM
Air Inlet Size	3/4 Inch	Diaphragm Material	Buna-N
Pump Ratio	2:1	Manifold Configuration	End Port
Air Inlet Thread Type	NPT	Fluid Outlet Size	1 Inch
