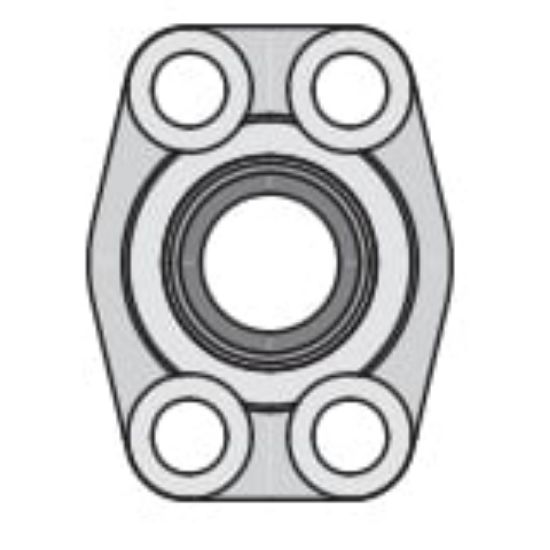

12G5Q2BSSK - 4-Bolt Hydraulic Flanges and Components

Parker's 4-bolt hydraulic flanges and components are proven leak-free connections, especially suited for larger sizes, higher pressures and assembly in tight quarters.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU 12G5Q2BSSK

$906.30/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel
Flange Size (inch)	3/4	Flange	Code 62
Face Style	O-Ring Face	Connection Pipe O.D. (inch)	na
Connection Tube O.D. (inch)	na	Connection 1 Style	SAE
Connection Style	Block Adapter Kit	Connection Thread Size (inch)	1 1/16-12
Flange Size	Code 62	Specifications Met	ISO 6162-2
O-Ring Material	Nitrile	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Includes	Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring.

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
