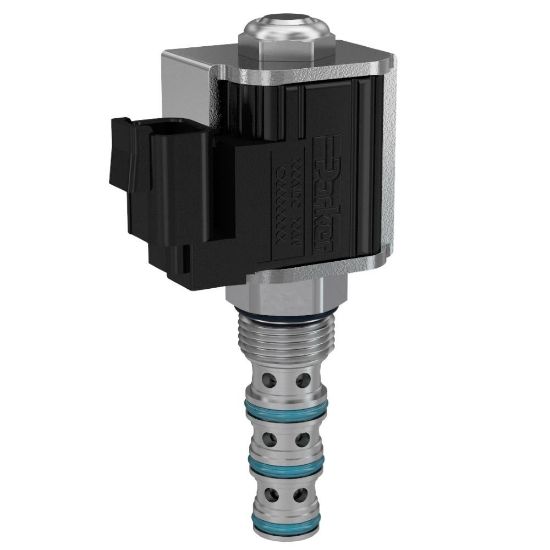

DSL104B2 - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL104B2

$96.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Flow Rate	10 GAL/MIN, 38 L/MIN	Actuation Type	Electrical
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3 and 4 blocked Energized
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Actuation Type	Electrical
Operating Temperature	-35 to +200 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	N/A	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Coil Nut Tightening Torque	5-7 lb-ft	Mounting Type	Screw in cartridge valve
Override Functionality	N/A	Flow Rate	38 L/min
Division	Hydraulic Systems Division	Operation Type	Solenoid operated
Body Material	N/A	Installation Torque	50-56 Nm
Maximum Operating Pressure	250 bar	Weight	0.2 kg
Maximum Inlet Pressure Rating	250 bar	Seal Material	D-Ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel	Leak Rate	230 @ 3600 PSI (250 BAR) cm3/min
Maximum Operating Temperature	+200 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	38 L/min	Coil Type	5/8" Super Coil
Cavity Size	C10-4	Minimum Operating Temperature	-37 °C
Function	4-way	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3 and 4 blocked Energized
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	30-60 ms
