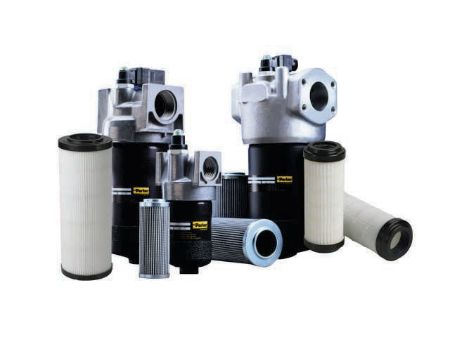

40CN Series Medium Pressure Filter
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
40CN Series Hydraulic and Lube Oil Medium Pressure Filter
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Pkg Qty | Nominal Filter Rating | Indicator Type | Operating Temperature | Max Pressure - Fatigue MAOP | Max Pressure - Non-Fatigue MAOP | Bypass | Nominal Flow Rating | Replacement Element | Seals | Element Length | Port | Options | Parker Group | Parker Division | Operating Temperature | Element Length | Port Type | Bypass | Seals | Filter Media Code | Filter Type | Nominal Filter Micron Rating | Filter Media Type | Nominal Flow Rating | Indicator Type | Max Pressure - Non-Fatigue MAOP | Options | Max Pressure - Fatigue MAOP | Series | Port |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40CN102QEBM2GN244 | Backordered | Backordered | POR | EA | EA | 1 | 2 micron | Visual - Automatic Reset | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 25 PSI (1.7 bar) | 15 GPM (57 LPM) | 936706Q | Nitrile | Single | 1 1/2 NPT | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | NPT | 25 PSI (1.7 bar) | Nitrile | 02QE | Medium Pressure Filter | 2 micron | Ecoglass III | 15 GPM (57 LPM) | Visual - Automatic Reset | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 1 1/2 NPT | |
| 40CN105QEBE2KN164 | Backordered | Backordered | $467.82/each | EA | EA | 1 | 5 micron | Electrical/Visual (DIN-43650 Connection) | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 15 GPM (57 LPM) | 936707Q | Nitrile | Single | 1 NPT | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | NPT | 50 PSI (3.5 bar) | Nitrile | 05QE | Medium Pressure Filter | 5 micron | Ecoglass III | 15 GPM (57 LPM) | Electrical/Visual (DIN-43650 Connection) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 1 NPT | |
| 40CN105QEBPKS164 | Backordered | Backordered | POR | EA | EA | 1 | 5 micron | Plugged Indicator | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 15 GPM (57 LPM) | 936707Q | Nitrile | Single | 16 SAE | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | SAE | 50 PSI (3.5 bar) | Nitrile | 05QE | Medium Pressure Filter | 5 micron | Ecoglass III | 15 GPM (57 LPM) | Plugged Indicator | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 16 SAE | |
| 40CN110QEBE2KS1621 | Backordered | Backordered | POR | EA | EA | 1 | 10 micron | Electrical/Visual (DIN-43650 Connection) | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 15 GPM (57 LPM) | 936708Q | Nitrile | Single | 16 SAE | No bypass and drain port | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | SAE | 50 PSI (3.5 bar) | Nitrile | 10QE | Medium Pressure Filter | 10 micron | Ecoglass III | 15 GPM (57 LPM) | Electrical/Visual (DIN-43650 Connection) | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 40CN | 16 SAE | |
| 40CN110QEVM2GN244 | Backordered | Backordered | POR | EA | EA | 1 | 10 micron | Visual - Automatic Reset | -15F to 250F (-26C to 121C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 25 PSI (1.7 bar) | 15 GPM (57 LPM) | 936708Q | Fluorocarbon | Single | 1 1/2 NPT | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -15F to 250F (-26C to 121C) | Single | NPT | 25 PSI (1.7 bar) | Fluorocarbon | 10QE | Medium Pressure Filter | 10 micron | Ecoglass III | 15 GPM (57 LPM) | Visual - Automatic Reset | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 1 1/2 NPT | |
| 40CN120QEBM2GN1621 | Backordered | Backordered | POR | EA | EA | 1 | 20 micron | Visual - Automatic Reset | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 25 PSI (1.7 bar) | 15 GPM (57 LPM) | 936709Q | Nitrile | Single | 1 NPT | No bypass and drain port | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | NPT | 25 PSI (1.7 bar) | Nitrile | 20QE | Medium Pressure Filter | 20 micron | Ecoglass III | 15 GPM (57 LPM) | Visual - Automatic Reset | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 40CN | 1 NPT | |
| 40CN202QEBPKN164 | Backordered | Backordered | $413.49/each | EA | EA | 1 | 2 micron | Plugged Indicator | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 30 GPM (114 LPM) | 936710Q | Nitrile | Double | 1 NPT | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | NPT | 50 PSI (3.5 bar) | Nitrile | 02QE | Medium Pressure Filter | 2 micron | Ecoglass III | 30 GPM (114 LPM) | Plugged Indicator | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 1 NPT | |
| 40CN202QEBPKS164 | Backordered | Backordered | POR | EA | EA | 1 | 2 micron | Plugged Indicator | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 30 GPM (114 LPM) | 936710Q | Nitrile | Double | 16 SAE | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | SAE | 50 PSI (3.5 bar) | Nitrile | 02QE | Medium Pressure Filter | 2 micron | Ecoglass III | 30 GPM (114 LPM) | Plugged Indicator | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 16 SAE | |
| 40CN202QEBPKS244 | Backordered | 3 in stock | $537.54/each | EA | EA | 1 | 2 micron | Plugged Indicator | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 30 GPM (114 LPM) | 936710Q | Nitrile | Double | 24 SAE | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | SAE | 50 PSI (3.5 bar) | Nitrile | 02QE | Medium Pressure Filter | 2 micron | Ecoglass III | 30 GPM (114 LPM) | Plugged Indicator | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 24 SAE | |
| 40CN202QEVE2KS244 | Backordered | Backordered | POR | EA | EA | 1 | 2 micron | Electrical/Visual (DIN-43650 Connection) | -15F to 250F (-26C to 121C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 30 GPM (114 LPM) | 936710Q | Fluorocarbon | Double | 24 SAE | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -15F to 250F (-26C to 121C) | Double | SAE | 50 PSI (3.5 bar) | Fluorocarbon | 02QE | Medium Pressure Filter | 2 micron | Ecoglass III | 30 GPM (114 LPM) | Electrical/Visual (DIN-43650 Connection) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 24 SAE | |
| 40CN210QEBE2GN164 | Backordered | Backordered | POR | EA | EA | 1 | 10 micron | Electrical/Visual (DIN-43650 Connection) | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 25 PSI (1.7 bar) | 30 GPM (114 LPM) | 936601Q | Nitrile | Double | 1 NPT | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | NPT | 25 PSI (1.7 bar) | Nitrile | 10QE | Medium Pressure Filter | 10 micron | Ecoglass III | 30 GPM (114 LPM) | Electrical/Visual (DIN-43650 Connection) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 1 NPT | |
| 40CN210QEBE2GS2421 | Backordered | Backordered | POR | EA | EA | 1 | 10 micron | Electrical/Visual (DIN-43650 Connection) | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 25 PSI (1.7 bar) | 30 GPM (114 LPM) | 936601Q | Nitrile | Double | 24 SAE | No bypass and drain port | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | SAE | 25 PSI (1.7 bar) | Nitrile | 10QE | Medium Pressure Filter | 10 micron | Ecoglass III | 30 GPM (114 LPM) | Electrical/Visual (DIN-43650 Connection) | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 40CN | 24 SAE | |
| 40CN220QEBM2KN1621 | Backordered | Backordered | $494.48/each | EA | EA | 1 | 20 micron | Visual - Automatic Reset | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 30 GPM (114 LPM) | 936712Q | Nitrile | Double | 1 NPT | No bypass and drain port | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | NPT | 50 PSI (3.5 bar) | Nitrile | 20QE | Medium Pressure Filter | 20 micron | Ecoglass III | 30 GPM (114 LPM) | Visual - Automatic Reset | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 40CN | 1 NPT | |
| 40CN220QEBPGS164 | Backordered | Backordered | POR | EA | EA | 1 | 20 micron | Plugged Indicator | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 25 PSI (1.7 bar) | 30 GPM (114 LPM) | 936712Q | Nitrile | Double | 16 SAE | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | SAE | 25 PSI (1.7 bar) | Nitrile | 20QE | Medium Pressure Filter | 20 micron | Ecoglass III | 30 GPM (114 LPM) | Plugged Indicator | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 16 SAE | |
| 40CN220QEBPKN2421 | Backordered | Backordered | POR | EA | EA | 1 | 20 micron | Plugged Indicator | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 30 GPM (114 LPM) | 936712Q | Nitrile | Double | 1 1/2 NPT | No bypass and drain port | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | NPT | 50 PSI (3.5 bar) | Nitrile | 20QE | Medium Pressure Filter | 20 micron | Ecoglass III | 30 GPM (114 LPM) | Plugged Indicator | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 40CN | 1 1/2 NPT | |
| 40CN302QEBE2KS2421 | Backordered | Backordered | $632.31/each | EA | EA | 1 | 2 micron | Electrical/Visual (DIN-43650 Connection) | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 45 GPM (171 LPM) | 936622Q | Nitrile | Triple | 24 SAE | No bypass and drain port | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Triple | SAE | 50 PSI (3.5 bar) | Nitrile | 02QE | Medium Pressure Filter | 2 micron | Ecoglass III | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 40CN | 24 SAE | |
| 40CN305QEBM2KN244 | Backordered | Backordered | POR | EA | EA | 1 | 5 micron | Visual - Automatic Reset | -40F to 225F (-40C to 107C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 45 GPM (171 LPM) | 936623Q | Nitrile | Triple | 1 1/2 NPT | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Triple | NPT | 50 PSI (3.5 bar) | Nitrile | 05QE | Medium Pressure Filter | 5 micron | Ecoglass III | 45 GPM (171 LPM) | Visual - Automatic Reset | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 1 1/2 NPT | |
| 40CN310QEVE2KN164 | Backordered | Backordered | $620.31/each | EA | EA | 1 | 10 micron | Electrical/Visual (DIN-43650 Connection) | -15F to 250F (-26C to 121C) | 800 psi (55.2 bar) | 1000 psi (69 bar) | 50 PSI (3.5 bar) | 45 GPM (171 LPM) | 936720Q | Fluorocarbon | Triple | 1 NPT | SAE-4 drain port on bowl | Filtration | Hydraulic Filter | -15F to 250F (-26C to 121C) | Triple | NPT | 50 PSI (3.5 bar) | Fluorocarbon | 10QE | Medium Pressure Filter | 10 micron | Ecoglass III | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 40CN | 1 NPT |
