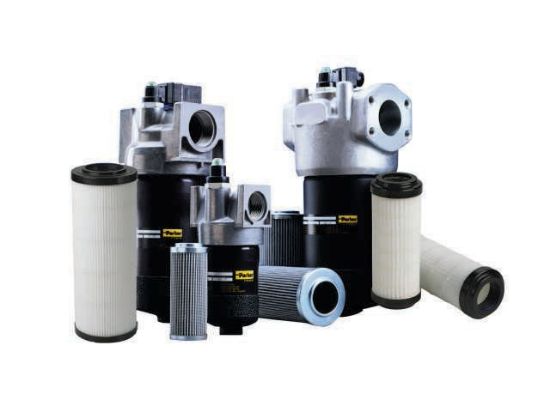

40CN210QEBE2GN164 - 40CN Series Medium Pressure Filter

40CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 40CN210QEBE2GN164

Products specifications

Attribute name	Attribute value
UOM	EA	Element Length	Double
Port	1 NPT	Seals	Nitrile
Pkg Qty	1	Options	SAE-4 drain port on bowl
Nominal Filter Rating	10 micron	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)	Operating Temperature	-40F to 225F (-40C to 107C)
Max Pressure - Fatigue MAOP	800 psi (55.2 bar)	UOM	EA
Nominal Flow Rating	30 GPM (114 LPM)	Replacement Element	936601Q
Bypass	25 PSI (1.7 bar)	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Nominal Filter Micron Rating	10 micron	Port Type	NPT
Bypass	25 PSI (1.7 bar)	Seals	Nitrile
Filter Type	Medium Pressure Filter	Filter Media Type	Ecoglass III
Element Length	Double	Filter Media Code	10QE
Port	1 NPT	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)	Options	SAE-4 drain port on bowl
Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)	Nominal Flow Rating	30 GPM (114 LPM)
Series	40CN

Product resources

CN Series (PDF)
