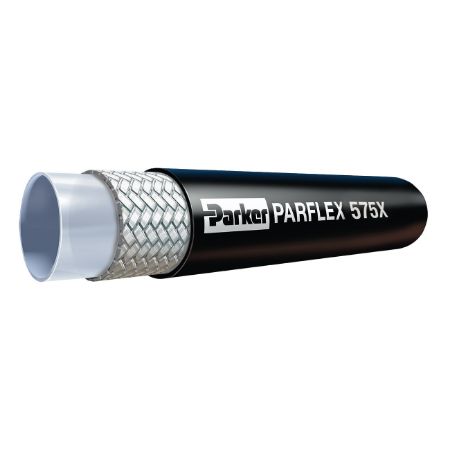

5,000 PSI Hydraulic Hose - 575X/575XN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast and accurate response time. The 575X is capable of operating at a 5,000 psi constant pressure. It is MSHA accepted and exhibits rapid response even over long lengths, making it the optimal solution for marine and oilfield service market applications.

Markets:
• Oil & Gas
• Marine
• Industrial

Features/Benefits:
• Fast response even over longer lengths
• Reduced weight without compromising performance
• Resistant to pin hole leaks
• 5000 psi constant working pressure

Applications:
• Applications requiring fast and accurate response time
• Oilfield service
• Offshore drilling

Certifications/Compliance:
• MSHA Accepted

Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Cover Material	Maximum Operating Temperature	Compatible Fitting	Size	Division	Hose Inner Tube Material	Design Factor	Media	Cover Material	Minimum Bend Radius	Minimum Operating Temperature	Application	Hose Reinforcement Material	Specifications Met	Outside Diameter	Weight	Inside Diameter	Maximum Operating Pressure
575X-12	Backordered	774 in stock	$46.45/foot	FT	3/4	Polyurethane	100 °C	CG Series	-12	Parflex Division	Polyamide (PA)	4:1	Air	Polyurethane	8 inch	-40 °F	Marine	Aramid Fiber	DNV GL	29.2 mm	0.24 lb/ft	3/4 inch	345 bar
575X-16	Backordered	182 in stock	$96.69/foot	FT	1	Polyurethane	212 °F	CG Series	-16	Parflex Division	Polyamide (PA)	4:1	Chemicals	Polyurethane	10 inch	-40 °C	Diagnostics	Aramid Fiber	DNV GL	40.4 mm	0.71 kg/m	1 inch	34.5 MPa
575X-4	Backordered	262 in stock	$10.55/foot	FT	1/4	Polyurethane, TOUGHJACKET	212 °F	CG Series	-4	Parflex Division	Polyamide (PA)	4:1	Air	Polyurethane	51 mm	-40 °C	Industrial Machinery	Aramid Fiber	DNV GL	0.510 inch	0.07 lb/ft	6 mm	345 bar
575X-6	Backordered	268 in stock	$17.41/foot	FT	3/8	Polyurethane, TOUGHJACKET	100 °C	CG Series	-6	Parflex Division	Polyamide (PA)	4:1	Lubricants (Oils)	Polyurethane	76 mm	-40 °C	Offshore Drilling	Aramid Fiber	MSHA	0.640 inch	0.13 kg/m	3/8 inch	5000 psi
575XN-8	Backordered	382 in stock	$27.06/foot	FT	1/2	Nylon	100 °C	CG Series	-8	Parflex Division	Polyamide (PA)	4:1	Air	Polyamide (PA)	102 mm	-40 °C	Industrial Machinery	Aramid Fiber	DNV GL	20.6 mm	0.14 lb/ft	13 mm	5000 psi
