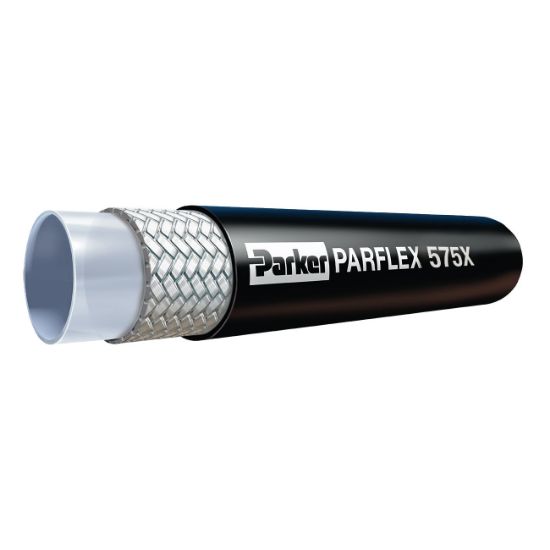

575XN-8 - 5,000 PSI Hydraulic Hose - 575X/575XN

Parflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast response times.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	382 in stock

SKU 575XN-8

$27.06/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Cover Material	Nylon	Media	Air
Design Factor	4:1	Cover Material	Polyamide (PA)
Minimum Bend Radius	102 mm	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	Aramid Fiber	Specifications Met	DNV GL
Application	Industrial Machinery	Weight	0.14 lb/ft
Inside Diameter	13 mm	Maximum Operating Pressure	5000 psi
Outside Diameter	20.6 mm	Size	-8
Division	Parflex Division	Compatible Fitting	CG Series
Maximum Operating Temperature	100 °C	Hose Inner Tube Material	Polyamide (PA)
