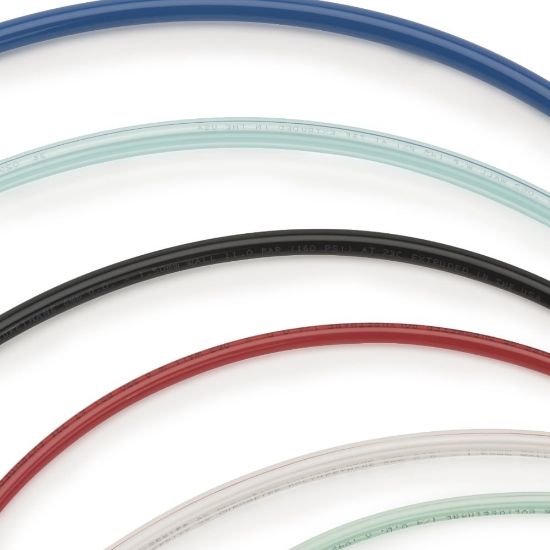

95UM-4X.75-BLU-0100 - PU Tubing

Flexible Polyurethane Tubing -95U/95UM Series offers the greatest flexibility and kink resistance along with exceptional abrasion resistance of any rubber or thermoplastic tubing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	68 in stock

SKU 95UM-4X.75-BLU-0100

$0.62/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	4MM
Standard Pack Qty (ft)	100	Product Type	Metric
Color	Blue	Minimum Burst Pressure	570
Application	Instrumentation	Tube Outside Diameter	4
Maximum Operating Pressure	190	Tube Material	Polyurethane
Maximum Operating Temperature	180	Division	Parflex Division
Compatible Fitting	Fast & Tite®	Tube Inside Diameter	0.098
Minimum Operating Temperature	-40	Media	Air
Wall Thickness	0.75 MM	Outside Diameter	4 MM
Material	Polyurethane	Max. Operating Pressure	190 psi 13.1 Bar
Max. Operating Temperature	180 °F 82 °C	Media	Air, Water
Min. Operating Temperature	-40 °C -40 °F	Min. Burst Pressure	39.3 Bar 570 psi
Inside Diameter	0.098 Inch 2.5 MM	Parker Division	Tubing
Parker Group	Fluid Connector
