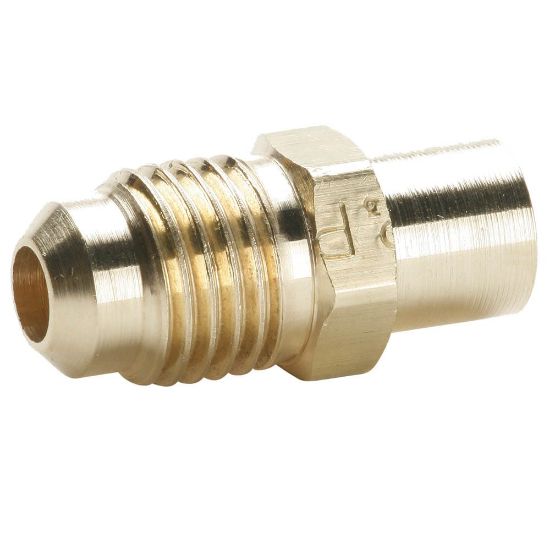

43F-10-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 43F-10-8

$17.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Type	Flare	Connection 1 Thread Size	7/8-14 inch
Connection 1 Tube Outside Diameter	5/8 inch	Connection 2 Tube Outside Diameter	1/2 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Product Style	Flare to Solder	Connection 2 Type	Solder O D
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Technology	Fluid & Gas Handling	Minimum Operating Temperature	-53 °C
Brand	Parker	Specifications Met	SAE J512, SAE J513
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Body Material	Brass
Maximum Operating Pressure	650 psi	O-Ring Material	Fluorocarbon
Nut Material	Brass	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Maximum Operating Temperature	121 °C
