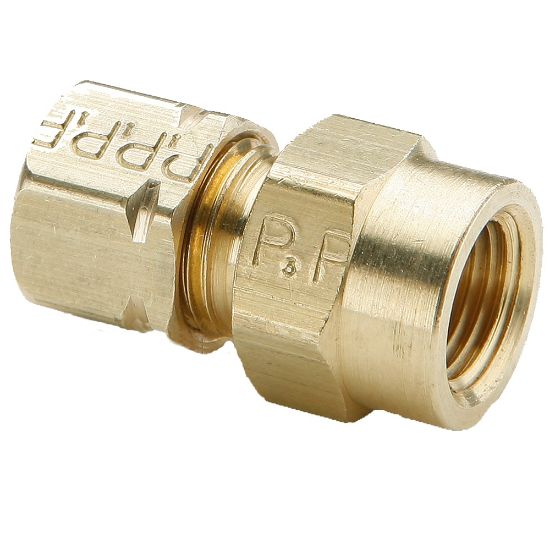

66CA-4-4 - Brass Compression Fittings, Compress-Align

Name: 66CA-4-4 - Brass Compression Fittings, Compress-Align
SKU: 66CA-4-4
Price: 7.78 USD
Availability: LimitedAvailability

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Manufacturer: Parker

Availability:

16 in stock

Wichita, KS	2
COLUMBIA, MO	2
Kansas City, KS	2
TOPEKA, KS	2
Joplin, MO	2
Peoria, IL	2
Olivette, MO	2
Decatur, IL	2

Partner Available:

573 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 66CA-4-4

$7.78/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection 2 Type	Female Pipe	Product Style	Connector
Connection 2 Thread Size	1/4"	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Configuration	Tube to Female Pipe
Tube Material	Thermoplastic	Minimum Operating Temperature	-54 °C
Application	Compressors	Materials of Construction	Brass (Nut)
Dimensional Weight	0.2759 lb	Body Material	Brass
Maximum Operating Pressure	2800 psi	Connection Type	NPTF
Maximum Operating Temperature	121 °C	For Fluid Type	Inert Gases
Division	Fluid System Connectors Division
