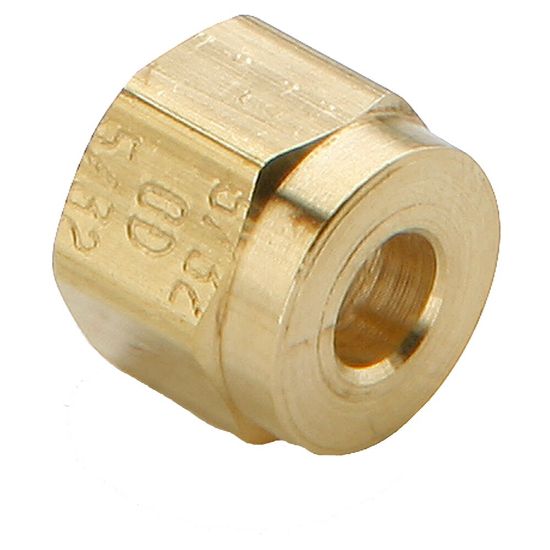

61TF-2 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	19 in stock

SKU 61TF-2

$2.86/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Nut
Product Style	Pipe to Pipe	Connection 2 Type	NA
Connection 1 Size	1/8 inch	Connection 2 Size	NA
Connection 1 Type	Female Pipe Thread	Division	Fluid System Connectors Division
Brand	Parker	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Application	Air Shift Transmission, Seat Controls, Dash Controls
Media	Compressed Air	Maximum Operating Pressure	10 bar
Maximum Operating Temperature	104 °C	Minimum Operating Temperature	-40 °F
Body Material	Brass	Tube Material	SAE J844 Type & B Nylon Tubing
Connection 1 Size	Compression	O-Ring Material	Nitrile
Connection 2 Tube Outside Diameter	na	Nut Material	Brass
Sleeve Material	Brass	Collet Material	Brass
