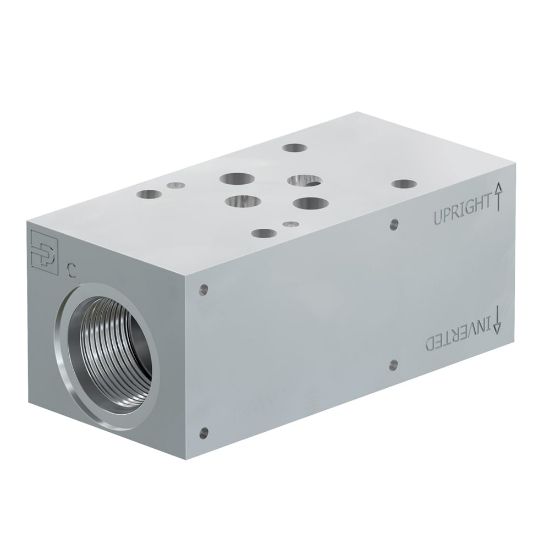

BD03-ABN-S - Cartpak Bodies

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	2 Limited Stock

SKU BD03-ABN-S

$333.36/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Type/Configuration	A and B Port Interrupt	Seal Material	Nitrile
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	250 °F
Maximum Flow Rate	n/a	Seal Material	Nitrile
Division	Hydraulic Systems Division	Body Material	Steel
Weight	2.15 lb	Number of Cavities	2
Division	Hydraulic Cartridge Systems Division	Flow Rate	n/a
Operating Temperature	-34 to 121 °F	Actuation Type	n/a
Maximum Operating Pressure	5000 psi	Configuration	A and B Port Interrupt
Cavity Size	C10-2	Minimum Operating Temperature	-34 °C
