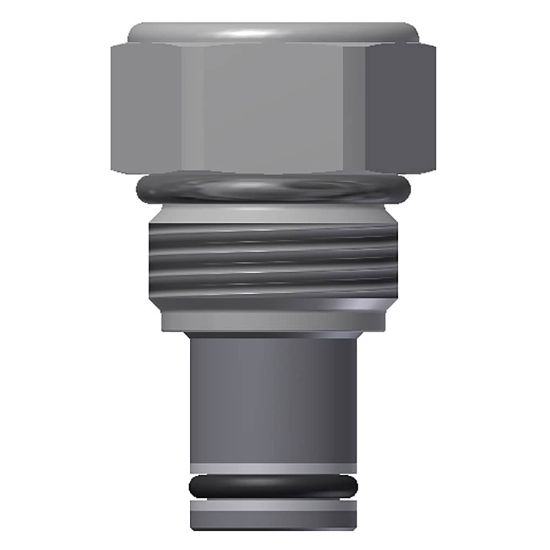

P08-2 - Cavity Plugs

Name: P08-2 - Cavity Plugs
SKU: P08-2
Price: 68.73 USD
Availability: LimitedAvailability

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

32 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU P08-2

$68.73/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Type/Configuration	All ports blocked
Seal Material	Nitrile	Cavity Size	C08
Number of Positions	2 way	Division	Hydraulic Systems Division
Body Material	N/A	Installation Torque	36 lb-ft
Weight	0.11 kg	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Flow Rate	N/A
Division	Hydraulic Cartridge Systems Division	Cavity Size	C08
Minimum Operating Temperature	-34 °C	Number of Positions	2 way
Operating Temperature	-30 to +250 °F	Actuation Type	N/A
Configuration	All ports blocked	Maximum Operating Pressure	350 bar
Flow Rate	N/A
