P10-2 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	42 in stock

SKU P10-2

$106.88/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Positions	2 way
Type/Configuration	All ports blocked	Seal Material	Nitrile
Cavity Size	C10	Operating Temperature	-30 to +250 °F
Flow Rate	N/A	Actuation Type	N/A
Configuration	All ports blocked	Number of Positions	2 way
Division	Hydraulic Systems Division	Maximum Operating Pressure	5000 psi
Installation Torque	75 Nm	Body Material	N/A
Weight	0.18 kg	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+250 °F
Maximum Flow Rate	N/A	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-34 °C
Cavity Size	C10

Customers who bought this item also bought

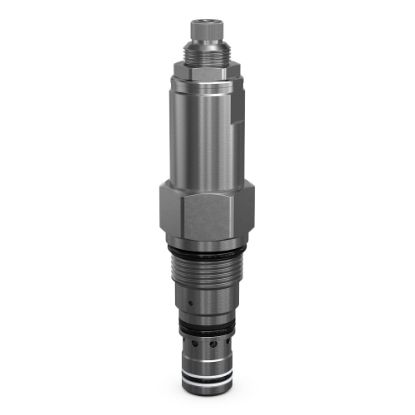

CB101AS30 - Standard Pilot Assisted Load Control Valves
