Picture of RAH101S50 - Pilot Operated Relief Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

RAH101S50 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).
Manufacturer: Parker
Availability:
18 in stock
Olivette, MO12
Wichita, KS5
Kansas City, KS1
Partner Available:109 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU RAH101S50
$55.03/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAAdjustment MechanismScrew
Maximum Inlet Pressure Rating5000 PSI, 350 BARSeal MaterialD-Ring (Standard)
Flow Rate30 GAL/MIN, 113 L/MINPressure Control Range200-5000 PSI, 13.8-350 BAR
DivisionHydraulic Cartridge Systems DivisionDivisionHydraulic Systems Division
Operating Temperature-35 to +200 °FFlow Rate30 Gal/min
Actuation TypePressure SensingMaximum Flow Rate30 Gal/min
Maximum Operating Pressure5000 psiMaximum Operating Temperature+200 °F
Minimum Operating Temperature-37 °CBody MaterialN/A
Seal MaterialD-Ring (Standard)Weight0.5 lb
Mounting TypeScrew in cartridge valveOperation TypeAutomatic
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4ConfigurationPressure Relief
For Fluid TypeMineral-based or synthetic hydraulic fluidsFunctionPilot Operated
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Leak Rate5 per @ 100 psi (6.8 bar) setting cm3/min
Cavity SizeC10-2Valve MaterialAll parts steel. All operating parts hardened steel
Installation Torque51-55 lb-ftMaximum Inlet Pressure Rating5000 psi
Adjustment MechanismScrewMaximum Pressure Setting5000 psi
Reseat Pressure90% of pressure settingMaximum Tank Pressure5000 psi
Pressure Control Range200-5000 psiStandard Setting Pressure172.4 bar
Pressure Control Sensitivity131.7 per turn bar
Customers who bought this item also bought

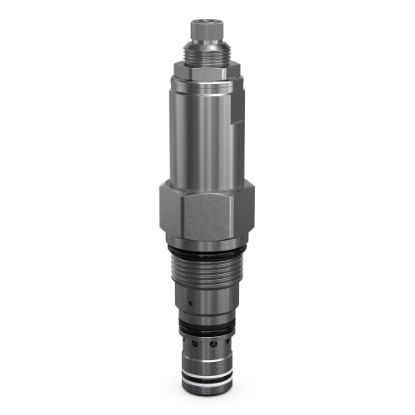

Picture of CB101AS30 - Standard Pilot Assisted Load Control Valves

CB101AS30 - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).
$113.75/each

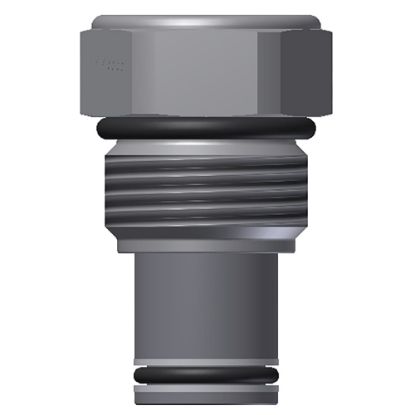

Picture of P10-2 - Cavity Plugs

P10-2 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.
$106.88/each
Picture of PRH101S10 - Pilot Operated Pressure Reducing Relieving Valves

PRH101S10 - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).
$74.39/each
Picture of RD102S09 - Direct Acting Relief Valves

RD102S09 - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).
$60.23/each
