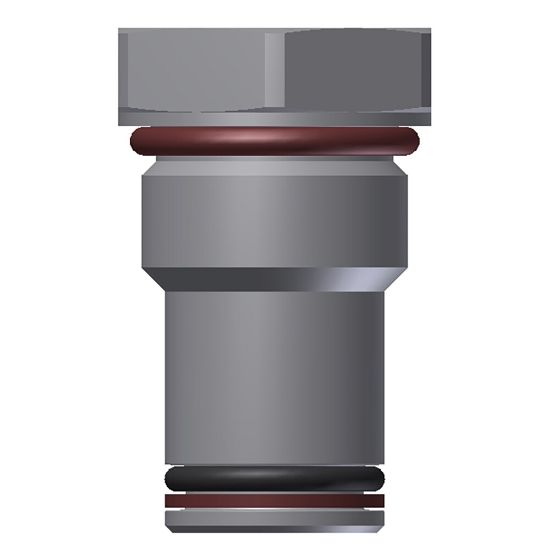

P12-2V - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU P12-2V

$218.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type/Configuration	All ports blocked
Seal Material	Fluorocarbon	Cavity Size	C12
Number of Positions	2 way	Division	Hydraulic Systems Division
Weight	0.65 lb	Maximum Operating Pressure	5000 psi
Body Material	N/A	Installation Torque	96 lb-ft
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	N/A	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Minimum Operating Temperature	-15 °F	Cavity Size	C12
Configuration	All ports blocked	Operating Temperature	-15 to +400 °F
Actuation Type	N/A	Flow Rate	N/A
Number of Positions	2 way
