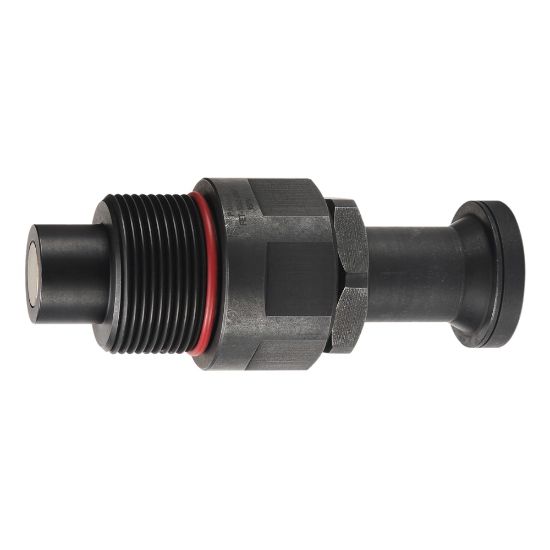

FET-1002-20SFP - Connect under Pressure, Heavy Duty, Hydraulic Flat Face Quick Couplings - FET Series

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU FET-1002-20SFP

$364.26/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Code 62 Flange pad
Maximum Operating Pressure	6000	Body Material	Steel
Connection Thread Size (inch)	na	Coupling Half	Male Nipple
Body Size (inch)	1	Product Type	Thread to Connect
Hex Size 2	3 inch	Plating Type	Black FNC Coating
Minimum Operating Temperature	-40 °F	Valve Type	Non-spill
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Seal Material	Polyurethane/Nitrile	Body Material	Steel
Application	Non-spill	Hex Size 1	65 mm
Dimensional Weight	0.23297841726618707 lb
