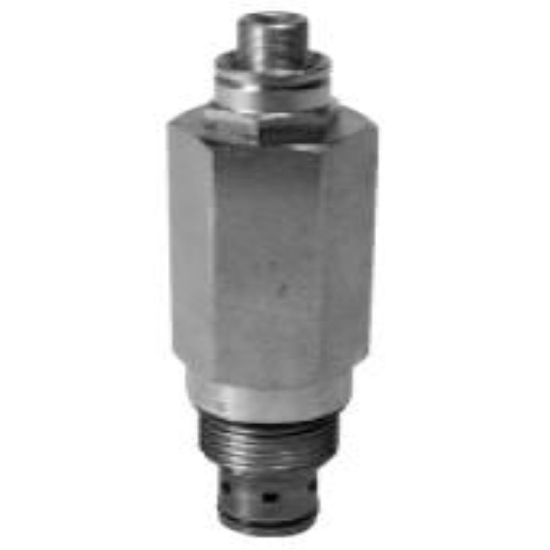

A04C2DZN - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU A04C2DZN

$160.98/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	53 GAL/MIN, 200 L/MIN	Pressure Control Range	29-725 PSI, 2-50 BAR
Maximum Tank Pressure	420 bar	Maximum Inlet Pressure Rating	6000 psi
Wire Mesh Screen Included	n/a	Function	Direct Acting
Standard Setting Pressure	360 psi	For Fluid Type	Synthetic Hydraulic Fluids
Leak Rate	25	Maximum Operating Temperature	250 °F
Maximum Pressure Setting	50 bar	Maximum Flow Rate	53 Gal/min
Seal Material	Nitrile	Valve Material	Hardened Steel
Actuation Type	Pressure Sensing	Filter Efficiency Rating	SAE Class 4
Weight	0.28 kg	Maximum Operating Pressure	420 bar
Operating Temperature	-34 to 121 °C	Configuration	Pressure Relief
Body Material	n/a	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Installation Torque	37 lb-ft
Reseat Pressure	n/a	Minimum Operating Temperature	-30 °F
Adjustment Mechanism	Screw	Cavity Size	C10-2
Mounting Type	Screw-in Cartridge	Pressure Control Sensitivity	5.2
Flow Rate	200 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Pressure Control Range	2 to 50 bar
