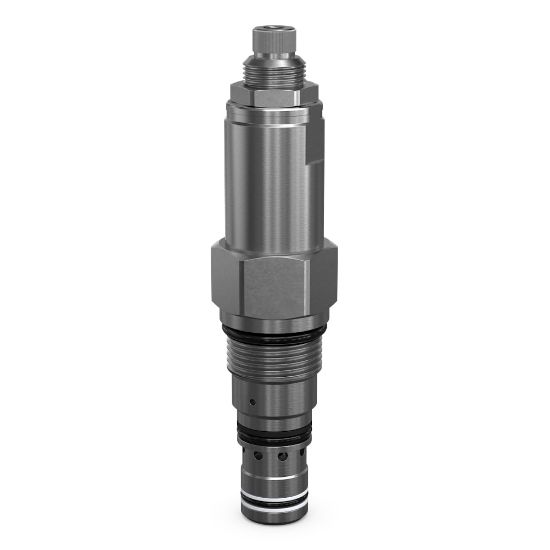

CB101BS20V - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CB101BS20V

$122.67/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Threaded Cartridge Valve	Maximum Flow Rate	12 GAL/MIN, 45 L/MIN
Holding Pressure	2000 PSI, 138 BAR	Pilot Pressure Ratio	4.5:1
Pressure Control Range	1000-2500 PSI, 69-172.4 BAR	Mounting Type	Threaded Cartridge Valve
Port Thread Size	N/A	Minimum Operating Temperature	-15 °F
Holding Pressure	140 bar	Operating Temperature	-15 to 400 °F
Pressure Control Range	1000 to 2500 psi	Flow Rate	12 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Sensitivity	n/a
Actuation Type	Pilot Operated	Body Material	n/a
Filter Efficiency Rating	ISO 4406 18/16/13	Weight	0.5 lb
Maximum Operating Pressure	350 bar	Pilot Location	External
Division	Hydraulic Systems Division	Pilot Pressure Ratio	4.5:1
Installation Torque	16 lb-ft	For Fluid Type	Mineral-based Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	45 L/min
Maximum Operating Temperature	400 °F	Valve Material	Steel
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5500 psi
Leak Rate	5	Flow Direction	Cylinder port 1
Function	Counterbalance Valve	Port Size	n/a
Adjustment Mechanism	Screw Adjustment	Cavity Size	C10-3
