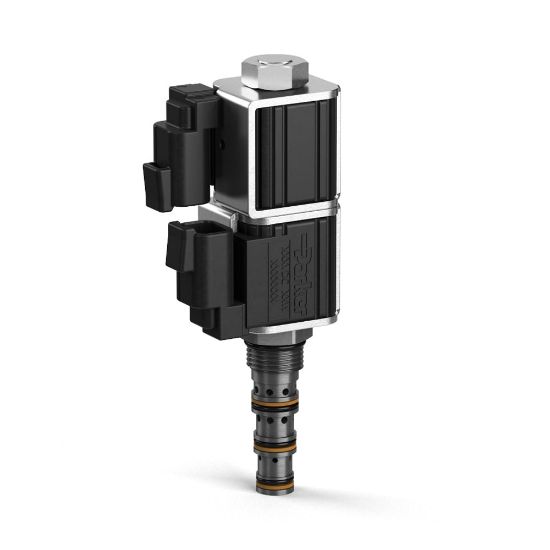

GP0253L2N - Directional Control Proportional Valves

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU GP0253L2N

$274.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Configuration	Floating Center
Override Functionality	Detented	Flow Rate	1, 1.4 GAL/MIN, 4, 5.3 L/MIN
Frequency	100-400 Hz	Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min
Maximum Flow Rate	4, 5.3 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Seal Material	Nitrile
Maximum Tank Pressure	210 bar	Maximum Inlet Pressure Rating	350 bar
Hysteresis	Less than 6%	Valve Material	All parts steel. All operating parts hardened steel
Response Time	50 ms	Function	Proportional Directional Control
Minimum Operating Temperature	-30 °F	Cavity Size	C08-4
Power Consumption	14, 19 W	Current	1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A
Override Functionality	Detented	Flow Rate	1, 1.4 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Floating Center
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Coil Nut Tightening Torque	4.1 Nm
Actuation Type	Electrical, Manual	Operating Temperature	-34 to +121 °C
Variation of Opening Point	25% - 30% of Input Signal	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Weight	0.34 lb	Maximum Operating Pressure	350 bar
Body Material	N/A	Installation Torque	30 Nm
Operation Type	Solenoid operated, Manually operated	Coil Type	1/2" Super Coil
Division	Hydraulic Systems Division
