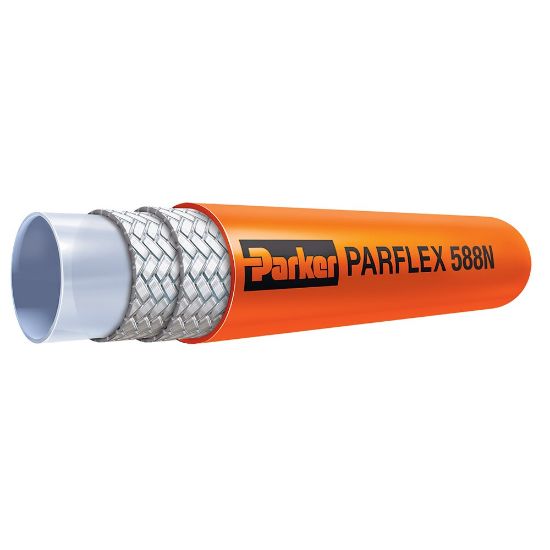

588N-12 - High Pressure Hose - 580N/588N

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	143 in stock

SKU 588N-12

$21.07/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Hose Type	Non Conductive	Notes	Do not use for pneumatic applications
Outside Diameter	1.150 inch	Weight	0.23 lb/ft
Inside Diameter	3/4 inch	Maximum Operating Pressure	2250 psi
Size	-12	Division	Parflex Division
Compatible Fitting	56 Series	Maximum Operating Temperature	212 °F
Design Factor	4:1	Hose Inner Tube Material	Non-Conductive
Media	Petroleum Hydraulic Fluids	Minimum Operating Temperature	-40 °C
Product Style	Non-Conductive	Minimum Bend Radius	203 mm
Cover Material	Polyurethane	Specifications Met	DNV GL
Hose Reinforcement Material	Fiber	Application	Agriculture Equipment
