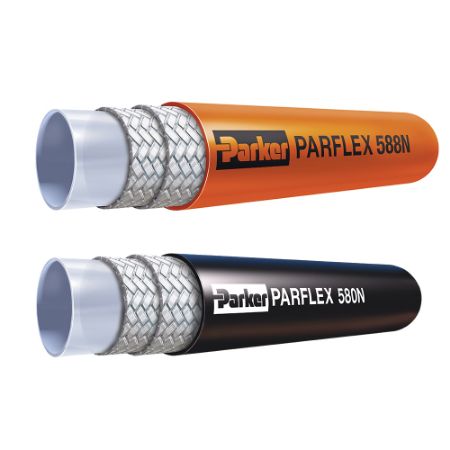

High Pressure Hose - 580N/588N
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 580N/588N High Pressure Hose meets SAE 100R8 specifications and, with a lighter weight and smaller O.D. than the 100R2, replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This high pressure hydraulic hose features a highly developed design, available in twin-line and multi-line constructions, to ensure high performance in hydraulic and pneumatic circuits and systems applications. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 580N/588N High Pressure Hose combines a variety of advantages to fulfill application requirements in expanding fluid handling and industrial pneumatic markets.
Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
Features/Benefits:
• Twin and multi-line available to fulfill diverse application requirements
• Lighter weight and smaller O.D. than 100R2 for improved handling and routing
• Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
Applications:
• Hydraulic and pneumatic circuits and systems
• Construction Equipment
• Factory Automation
• Machine Tools
• Material Handling Equipment
• Turf Equipment
Certifications/Compliance:
• Meets/Exceeds SAE J517 100R8
• DNV Type Approved
• 580N MSHA complaint cover
• 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Hose 588N has a non-conductive core tube for applications where electric shock is a potential danger for operators
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
Features/Benefits:
• Twin and multi-line available to fulfill diverse application requirements
• Lighter weight and smaller O.D. than 100R2 for improved handling and routing
• Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
Applications:
• Hydraulic and pneumatic circuits and systems
• Construction Equipment
• Factory Automation
• Machine Tools
• Material Handling Equipment
• Turf Equipment
Certifications/Compliance:
• Meets/Exceeds SAE J517 100R8
• DNV Type Approved
• 580N MSHA complaint cover
• 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Hose 588N has a non-conductive core tube for applications where electric shock is a potential danger for operators
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Hose Type | Product Style | Minimum Bend Radius | Minimum Operating Temperature | Hose Reinforcement Material | Application | Specifications Met | Outside Diameter | Weight | Inside Diameter | Maximum Operating Pressure | Division | Compatible Fitting | Maximum Operating Temperature | Hose Inner Tube Material | Size | Media | Design Factor | Cover Material | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 580N-12 | 6 in stock | 446 in stock | $13.17/foot | FT | 3/4 | General Purpose | Standard | 8 inch | -40 °F | Fiber | Construction Equipment | DNG GL | 1.150 inch | 0.35 kg/m | 3/4 inch | 155 bar | Parflex Division | 56 Series | 212 °F | Polyamide (PA) | -12 | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | ||
| 580N-16 | Backordered | 127 in stock | $26.20/foot | FT | 1 | General Purpose | Standard | 254 mm | -40 °F | Fiber | Manufacturing | SAE 100R8 | 1.470 inch | 0.56 kg/m | 1 inch | 2000 psi | Parflex Division | 56 Series | 100 °C | Polyamide (PA) | -16 | Lubricants (Oils) | 4:1 | Polyurethane | ||
| 580N-8 | 12 in stock | 424 in stock | $10.40/foot | FT | 1/2 | General Purpose | Standard | 4 inch | -40 °F | Fiber | Fluid Handling | SAE 100R8 | 22.6 mm | 0.31 kg/m | 1/2 inch | 241 bar | Parflex Division | 56 Series | 100 °C | Polyamide (PA) | -8 | Chemicals | 4:1 | Polyurethane | ||
| 588N-10 | Backordered | Backordered | $16.20/foot | FT | 5/8 | Non Conductive | Non-Conductive | 6 inch | -40 °F | Fiber | Industrial | MSHA | 0.980 inch | 0.21 lb/ft | 16 mm | 190 bar | Parflex Division | 56 Series | 100 °C | Non-Conductive | -10 | Lubricants (Oils) | 4:1 | Polyurethane | Do not use for pneumatic applications | |
| 588N-12 | Backordered | 143 in stock | $21.07/foot | FT | 3/4 | Non Conductive | Non-Conductive | 203 mm | -40 °C | Fiber | Agriculture Equipment | DNV GL | 1.150 inch | 0.23 lb/ft | 3/4 inch | 2250 psi | Parflex Division | 56 Series | 212 °F | Non-Conductive | -12 | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | Do not use for pneumatic applications | |
| 588N-16 | Backordered | 69 in stock | $29.88/foot | FT | 1 | Non Conductive | Non-Conductive | 254 mm | -40 °F | Fiber | Agriculture Equipment | SAE J517 (for less than 50 micro-amps leakage under 75,000 volts per ft.) | 1.470 inch | 0.56 kg/m | 25 mm | 2000 psi | Parflex Division | 56 Series | 100 °C | Non-Conductive | -16 | Petroleum Hydraulic Fluids | 4:1 | Polyurethane | Do not use for pneumatic applications | |
| 588N-8 | 11 in stock | 565 in stock | $11.08/foot | FT | 1/2 | Non Conductive | Non-Conductive | 102 mm | -40 °F | Fiber | Fluid Handling | SAE 100R8 | 22.6 mm | 0.21 lb/ft | 13 mm | 24.1 MPa | Parflex Division | 56 Series | 100 °C | Non-Conductive | -8 | Chemicals | 4:1 | Polyurethane | Do not use for pneumatic applications |
