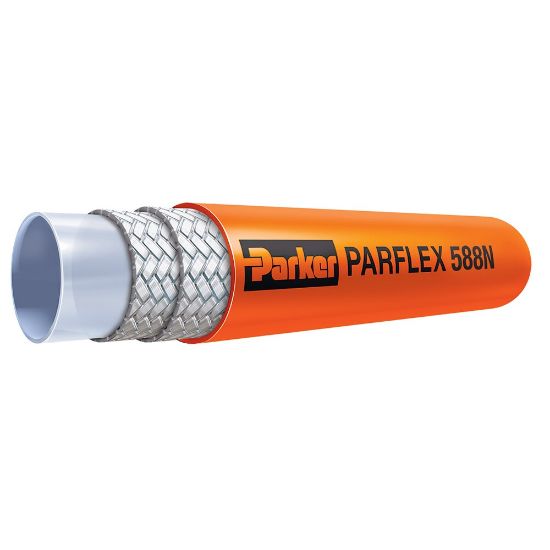

588N-8 - High Pressure Hose - 580N/588N

Name: 588N-8 - High Pressure Hose - 580N/588N
SKU: 588N-8
Price: 11.08 USD
Availability: InStock

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

Manufacturer: Parker

Availability:

11 in stock

Kansas City, KS	10
Wichita, KS	1

Partner Available:

565 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 588N-8

$11.08/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Hose Type	Non Conductive	Notes	Do not use for pneumatic applications
Media	Chemicals	Design Factor	4:1
Hose Inner Tube Material	Non-Conductive	Minimum Bend Radius	102 mm
Product Style	Non-Conductive	Cover Material	Polyurethane
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	Fiber
Specifications Met	SAE 100R8	Application	Fluid Handling
Outside Diameter	22.6 mm	Maximum Operating Pressure	24.1 MPa
Inside Diameter	13 mm	Weight	0.21 lb/ft
Division	Parflex Division	Compatible Fitting	56 Series
Maximum Operating Temperature	100 °C	Size	-8
