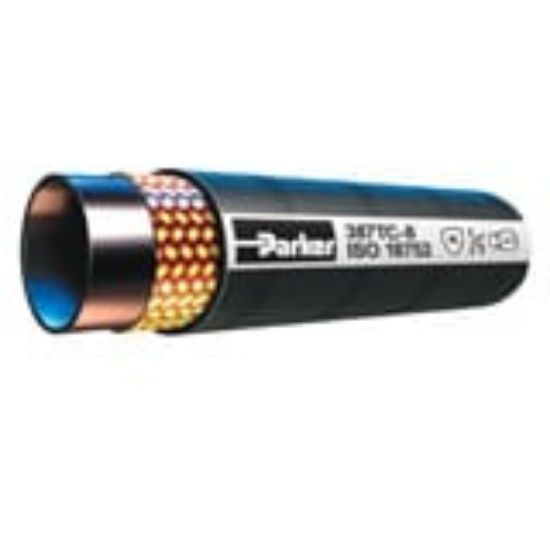

387ST-10 - Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	355 in stock

SKU 387ST-10

$16.12/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-10
Hose Cover Type	SuperTough	Division	Hose Products Division
Hose Inner Tube Material	Synthetic Rubber	Compatible Fitting	43 Series
Size	-10	Maximum Operating Temperature	125 °C
Weight	0.49 kg/m	Outside Diameter	23.9 mm
Maximum Operating Pressure	21 MPa	Inside Diameter	5/8 inch
Nominal Hose Inside Diameter	16 mm	Specifications Met	ISO 18752, Type AC
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	2 Braids of Steel Wire
Minimum Bend Radius	100 mm	Application	Petroleum Base Hydraulic Fluids
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Media	Petroleum Hydraulic Fluids
Hose Cover Type	SuperTough	Cover Material	Synthetic Rubber Super Abrasion Resistant
