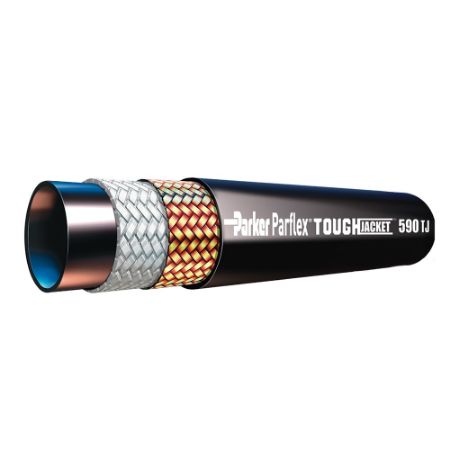

Hydraulic Hose - 590TJ
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The TOUGHACKET™ 590TJ compact hydraulic hose from Parker Parflex is a flexible thermoplastic hose featuring the abrasion-resistant TOUGHJACKET cover. The 590TJ hose delivers low length change under pressure and consistent long lengths. Designed to withstand the strains of demanding use, the compact 590TJ hydraulic hose is the optimal solution for large-scale, heavy-duty applications, including construction equipment, agriculture equipment, transportation, and more. Parflex 590TJ is also light-weight for easier routing and handles temperatures from -40°F to +250°F.
Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
• Transportation
Features/Benefits:
• TOUGHJACKET Polyurethane cover for best abrasion resistance
• Low length change under pressure
• Consistent long lengths
• Smaller O.D. than rubber 100R16 hose for easier routing
• 23% to 42% lighter weight than rubber 100R2 hose
• Twin and multi-line constructions available
Applications:
• Construction Equipment
• Over-the-Sheave Installations
• Booms and Cable Tracks
• Machine Tools
• Hydrostatic Transmissions
• Refuse Vehicles
• Agriculture Machinery
Certifications/Compliance:
• MSHA compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
• Transportation
Features/Benefits:
• TOUGHJACKET Polyurethane cover for best abrasion resistance
• Low length change under pressure
• Consistent long lengths
• Smaller O.D. than rubber 100R16 hose for easier routing
• 23% to 42% lighter weight than rubber 100R2 hose
• Twin and multi-line constructions available
Applications:
• Construction Equipment
• Over-the-Sheave Installations
• Booms and Cable Tracks
• Machine Tools
• Hydrostatic Transmissions
• Refuse Vehicles
• Agriculture Machinery
Certifications/Compliance:
• MSHA compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose Style | Standard Pack Qty (ft) | Hose I.D. (inch) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Product Style | Outside Diameter | Size | Cover Material | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Design Factor | Hose Cover Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 590TJ-12 | 4 in stock | 99 in stock | $14.22/foot | FT | Single | 200 | 3/4 | Parflex Division | Hydrostatic Drive | Water | 2500 psi | 121 °C | -40 °F | MSHA | 0.39 lb/ft | Single Line | 1.080 inch | -12 | Polyurethane | 3/4 inch | 43 Series | 4-3/4 inch | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-16 | Backordered | Backordered | $20.76/foot | FT | Single | 200 | 1 | Parflex Division | Hydrostatic Drive | Petroleum Hydraulic Fluids | 14 MPa | 121 °C | -40 °C | MSHA | 0.71 lb/ft | Single Line | 1.420 inch | -16 | Polyurethane | 25 mm | 43 Series | 6 inch | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-4 | Backordered | 1482 in stock | $7.59/foot | FT | Single | 500 | 1/4 | Parflex Division | Industrial Machinery | Water | 35 MPa | 121 °C | -40 °C | MSHA | 0.20 kg/m | Single Line | 12.5 mm | -4 | Polyurethane | 1/2 inch | 56 Series | 44.5 mm | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-6 | Backordered | 3452 in stock | $7.83/foot | FT | Single | 500 | 3/8 | Parflex Division | Agriculture Equipment | Petroleum Hydraulic Fluids | 28 MPa | 250 °F | -40 °C | MSHA | 0.29 kg/m | Single Line | 0.640 inch | -6 | Polyurethane | 10 mm | 56 Series | 57.2 mm | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-6-50 | Backordered | Backordered | $6.63/foot | FT | Single | 50 | 3/8 | Parflex Division | Over-the-Sheave | Water | 28 MPa | 121 °C | -40 °C | MSHA | 0.19 lb/ft | Single Line | 0.640 inch | -6 | Polyurethane | 10 mm | 56 Series | 2-1/4 inch | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-6-6 | Backordered | Backordered | $15.95/foot | FT | Twin-line | 250 | 3/8 | Parflex Division | Construction Equipment | Petroleum Hydraulic Fluids | 280 bar | 121 °C | -40 °F | MSHA | 0.38 lb/ft | Twin-Line | 1.280 inch | -6 | Polyurethane | 3/8 inch | 56 Series | 57.2 mm | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-8 | Backordered | 1578 in stock | $9.59/foot | FT | Single | 400 | 1/2 | Parflex Division | Industrial Machinery | Water | 3553 psi | 250 °F | -40 °C | MSHA | 0.24 lb/ft | Single Line | 19.3 mm | -8 | Polyurethane | 1/2 inch | 56 Series | 82.6 mm | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-8-50 | Backordered | Backordered | $8.12/foot | FT | Single | 50 | 1/2 | Parflex Division | Agriculture Equipment | Petroleum Hydraulic Fluids | 24.5 MPa | 250 °F | -40 °C | MSHA | 0.36 kg/m | Single Line | 0.760 inch | -8 | Polyurethane | 13 mm | 56 Series | 82.6 mm | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ | |
| 590TJ-8-8 | 80 in stock | Backordered | $19.52/foot | FT | Twin-line | 250 | 1/2 | Parflex Division | Over-the-Sheave | Water | 24.5 MPa | 121 °C | -40 °C | MSHA | 0.72 kg/m | Twin-Line | 1.520 inch | -8 | Polyurethane | 13 mm | 56 Series | 82.6 mm | Copolyester | Braid of High Tensile Steel Wire | 4:1 | ToughJACKET™ |
