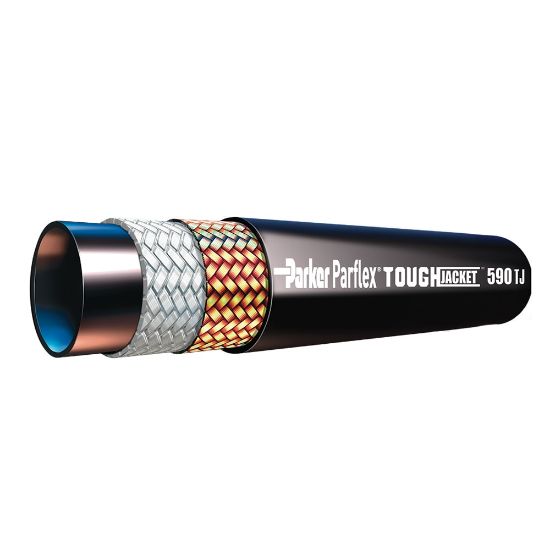

Picture of 590TJ-4 - Hydraulic Hose - 590TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

590TJ-4 - Hydraulic Hose - 590TJ

The TOUGHJACKET™ 590TJ compact hydraulic hose features working pressures from 5000-2000 psi, long continuous lengths (up to 500 feet) and is qualified to use with 56 Series Global Fittings. Exceptional abrasion resistance.
Manufacturer: Parker
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:1482 in stock
SKU 590TJ-4
$7.59/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1/4
Hose StyleSingleStandard Pack Qty (ft)500
DivisionParflex DivisionApplicationIndustrial Machinery
MediaWaterMaximum Operating Pressure35 MPa
Maximum Operating Temperature121 °CMinimum Operating Temperature-40 °C
Specifications MetMSHAWeight0.20 kg/m
Product StyleSingle LineOutside Diameter12.5 mm
Size-4Cover MaterialPolyurethane
Inside Diameter1/2 inchCompatible Fitting56 Series
Minimum Bend Radius44.5 mmHose Inner Tube MaterialCopolyester
Hose Reinforcement MaterialBraid of High Tensile Steel WireDesign Factor4:1
Hose Cover TypeToughJACKET™
