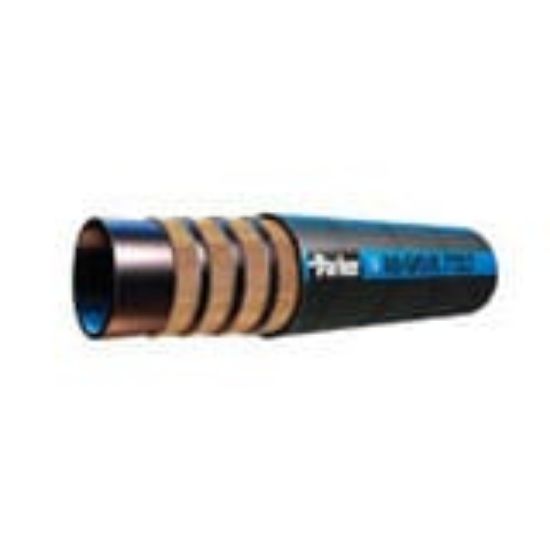

722LT-6 - Hydraulic Low-Temperature Spiral Hose 2500-4000 PSI - 722LT Hose

Parker’s 722LT hose is a hydraulic low-temperature spiral hose with a pressure range of 2500-4000 PSI in different sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 722LT-6

$37.36/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-6
Division	Hose Products Division	Application	Construction Equipment
Media	Petroleum Hydraulic Fluids	Maximum Operating Pressure	28 MPa
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-57 °C
Specifications Met	SAE J517 and 100R12	Weight	0.60 kg/m
Outside Diameter	0.780 inch	Cover Material	Synthetic Rubber
Inside Diameter	3/8 inch	Compatible Fitting	43 Series
Minimum Bend Radius	2-1/2 inch	Hose Inner Tube Material	Nitrile Synthetic Rubber
Hose Reinforcement Material	4 Spirals of Steel Wire	Nominal Hose Inside Diameter	10 mm

Product resources

Compliance, Certifications & Safety

REACH_Declaration--(English) (PDF)

Literature and Reference Materials

722LT Hose - Low-temperature spiral hose for extreme cold conditions- 4480-B162 (PDF)
