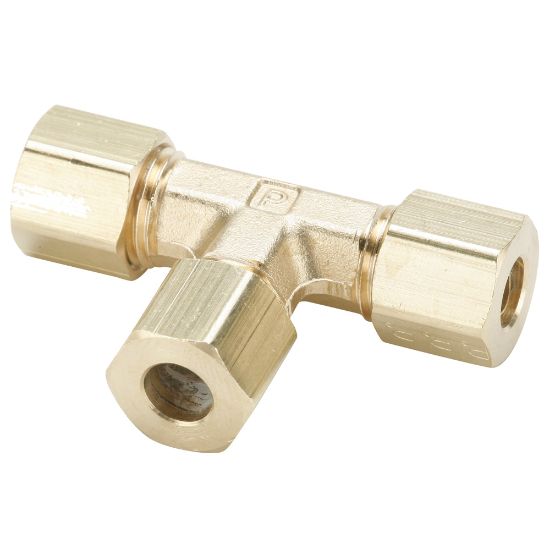

164C-12 - Inch Brass Compression Fittings

Name: 164C-12 - Inch Brass Compression Fittings
SKU: 164C-12
Price: 52.04 USD
Availability: InStock

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Manufacturer: Parker

Availability:

9 in stock

Olivette, MO

Partner Available:

14 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 164C-12

$52.04/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 2 Size	3/4"	Configuration	Tube to Tube
Body Material	Brass, Forged	Connection 1 Size	3/4"
Connection 1 Type	Compression	Connection 2 Type	Compression
Connection 3 Size	3/4"	Connection 3 Type	Compression
Media	Water, air, inert and non-combustible gasses	Tube Material	Copper, Aluminum, Thermoplastic
Division	Fluid System Connectors Division	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-54 °C	Sleeve Material	Brass, Acetal
Dimensional Weight	0.4599 lb	Maximum Operating Pressure	7 bar
Quantity per Box	na	Specifications Met	na
Application	Compressors, Machine Tools, Engine, Pumps, Purification	Weight	na
Nut Material	Brass	Body Material	Brass
