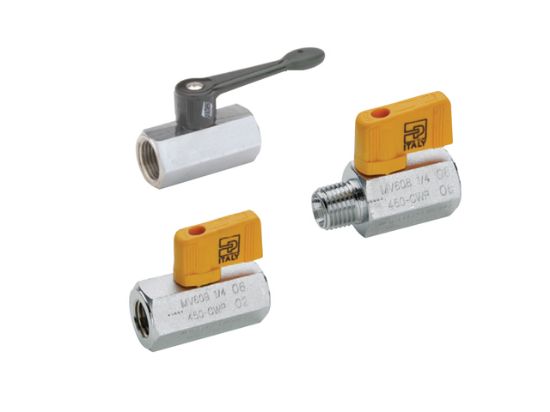

MV200-2 - Industrial Ball Valves - Chrome Plated Brass Ball Valves

Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	25 in stock

SKU MV200-2

$26.24/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/8
Maximum Working Pressure (psi)	200	Connection 1 Thread Size (inch)	1/8
Style	Female Pipe Ends	Handle	Polyamide Lever
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Vacuum Rating (inch of Hg)	na	Maximum Working Pressure (Bar)	13.7
Configuration	In-Line	Maximum Operating Pressure	13.7 bar
Actuation Type	Manual	Specifications Met	N/A
Orifice Size	N/A	Ball Material	Chrome Plated Brass
Mounting Type	In-Line	Seat Material	PTFE
Connection Type	NPT	Operation Type	on/off
Handle Type	Lever	Body Material	Chrome Plated Brass
Seal Material	PTFE	Connection Size	1/8 inch
Division	Fluid System Connectors Division	Maximum Flow Rate	1.3 Cv
Maximum Operating Temperature	93 °C	Minimum Operating Temperature	0 °F
Product Type	Ball Valve	Lock Type	Non-Locking
Function	2-Way	Material	Chrome Plated Brass
Flow Diameter	0.31 Inch	Free Flow CV Factor	1.3
Pkg Qty/UOM	10 EA	Thread 1	1/8 NPT
Pkg Qty	10	UOM	EA
Parker Group	Fluid Connector	Parker Division	Fluid Systems Connector (Brass Products)
Thread 1	1/8 NPT	Thread 1 Type	NPT
Configuration Type	Female to Female	Valve Type	Ball Valve
Series	MV200	Material	Chrome Plated Brass
Operating Temperature	0°F to +200°F	Max Pressure	14 Bar (200 PSI)
Flow Diameter	0.31 Inch	Free Flow CV Factor	1.3
Material - Ball	Chrome Plated Brass	Material - Seats/Seals	PTFE
Material - Handle	Plastic	Material Stem O-Ring	Fluorocarbon
